How to Choose High-speed Spiral Doors?

Table of Content [Hide]

1. No other design is able to combine the highest opening speeds, durability and effectiveness as the high-speed spiral doors.

2. Thanks to the fast opening and closing speeds, little energy is lost to the outside.

3. It can also be installed where space is limited.

CI Industry high-speed spiral doors

CI Industry high-speed spiral doors represent a new generation of industrial doors: energy-efficient functionality, perfect accoustic and thermal insulation, smooth running while also maintaining high speeds. We pay particular attention to improving the physical properties of the door leaf, optimising the functionality, and adopting state-of-the-art technology.

Our high-speed spiral doors are available in a wide range of designs.

Dimension: Width: 1250mm(min)--7000mm(max)

Height:2000mm(min)--8000mm(max)

Wind Resistant: Capacity: 3.5Pa, Typhoon Grade: G12 (120km/h)

Speed: Opening Speed: 1.2m/s--2.0m/s, adjustable

Closing Speed not less than 0.6m/s, adjustable

Safety Device: Rader, Airbag, Photocell

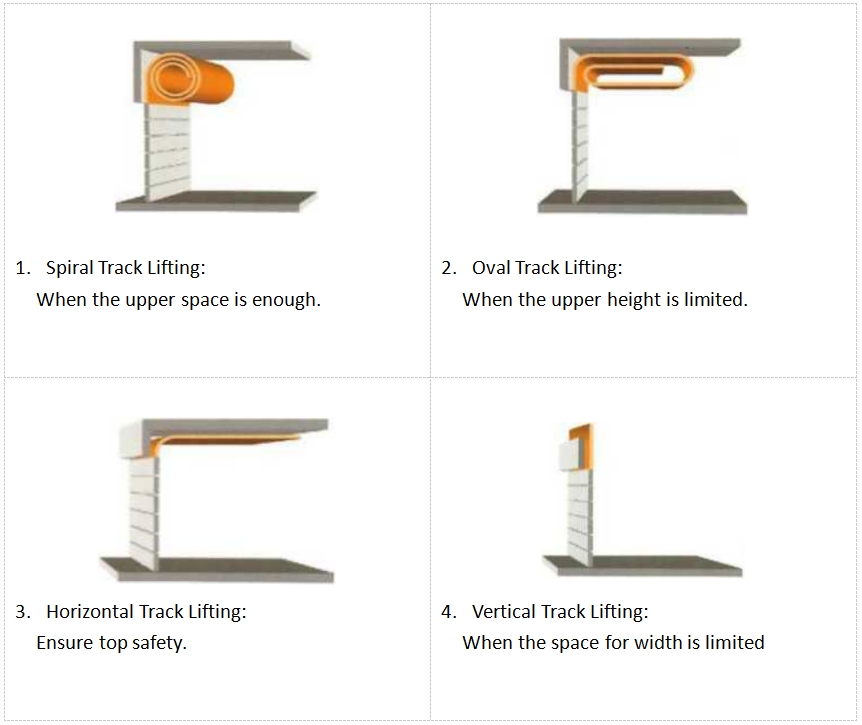

Lifting Options
