Designed with safety in mind, this Flush Steel Insulated Sectional Garage Door includse robust safety features to protect your family and belongings. The advanced insulation also provides excellent soundproofing, creating a peaceful environment in your home.
Feel free to contact us for further queries.
CI Industry, a premier name in Flush Steel Insulated Sectional Garage Doors, is committed to delivering state-of-the-art and high-quality products to cater to the varied needs of commercial and industrial customers. Contact us to choose from a wide selection of sizes and customization options that will perfectly suit your home's architecture.
| Product Name | Flush Sectional Garage Doors |
| Material Thickness | GA26 Galvanized steel |
| Panel Thickness | 2'' |
| Construction | Galvanized Steel – PU Foam – Galvanized Steel |
| Panel Type | Non Finger Protection |
| Color | Black(RAL9004), Anthracite Grey(RAL7016) |
| Length | Max to 39' |
| Track Radius | R12'' 2'' or R1'' 3'' track |
| Track Lift | Standard lift, High lift, Vertical Lift is available |
| Accessory | Hinges, Rollers, Torsion Springs, Cable drums, all necessary hardware for the installation |
| Window | Size could be customized, with full view or frosted polycarbonate board |
| Pedestrian door | Available |
Sandwich structure has good heat insulation performance

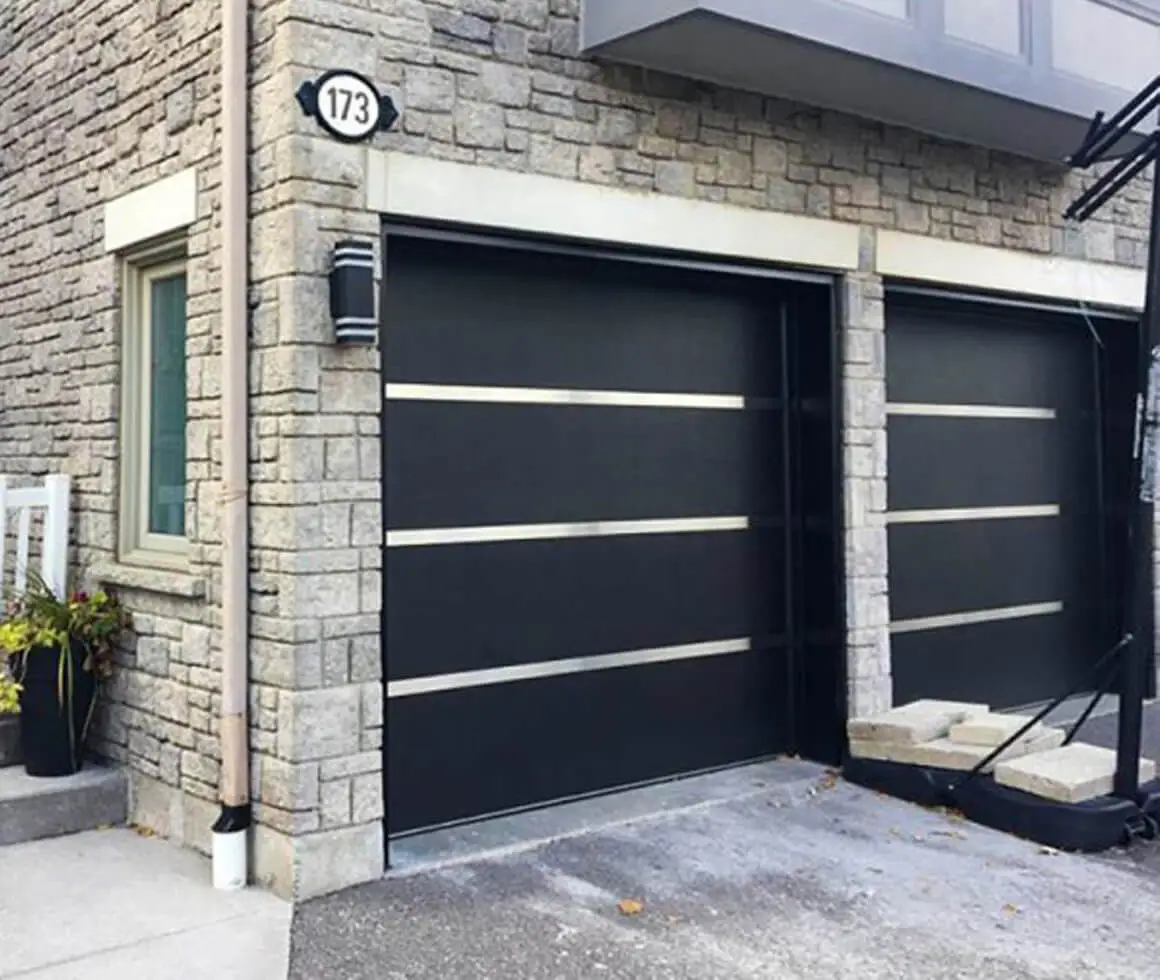

With custom stainless steel strips, more contemporary look
Insulated sectional garage door panels are available for increased energy efficiency.
| |
| 1. Steel profile with multi-chamber top seal | 9. Horizontal track |
| 2. Multi-chamber side seals | 10. C-profile |
| 3. Bottom profile with thermal break and bottom seal | 11. Sandwich panel |
| 4. Top corner bracket | 12. Double pulley bracket |
| 5. Side support with adjustable roller holder | 13. Universal mounting bracket for horizontal tracks |
| 6. Bottom corner bracket with adjustable roller holder | 14. Handle |
| 7. Hinge | 15. Latch lock (optional) |
| 8. Vertical track | 16. Extension springs |
