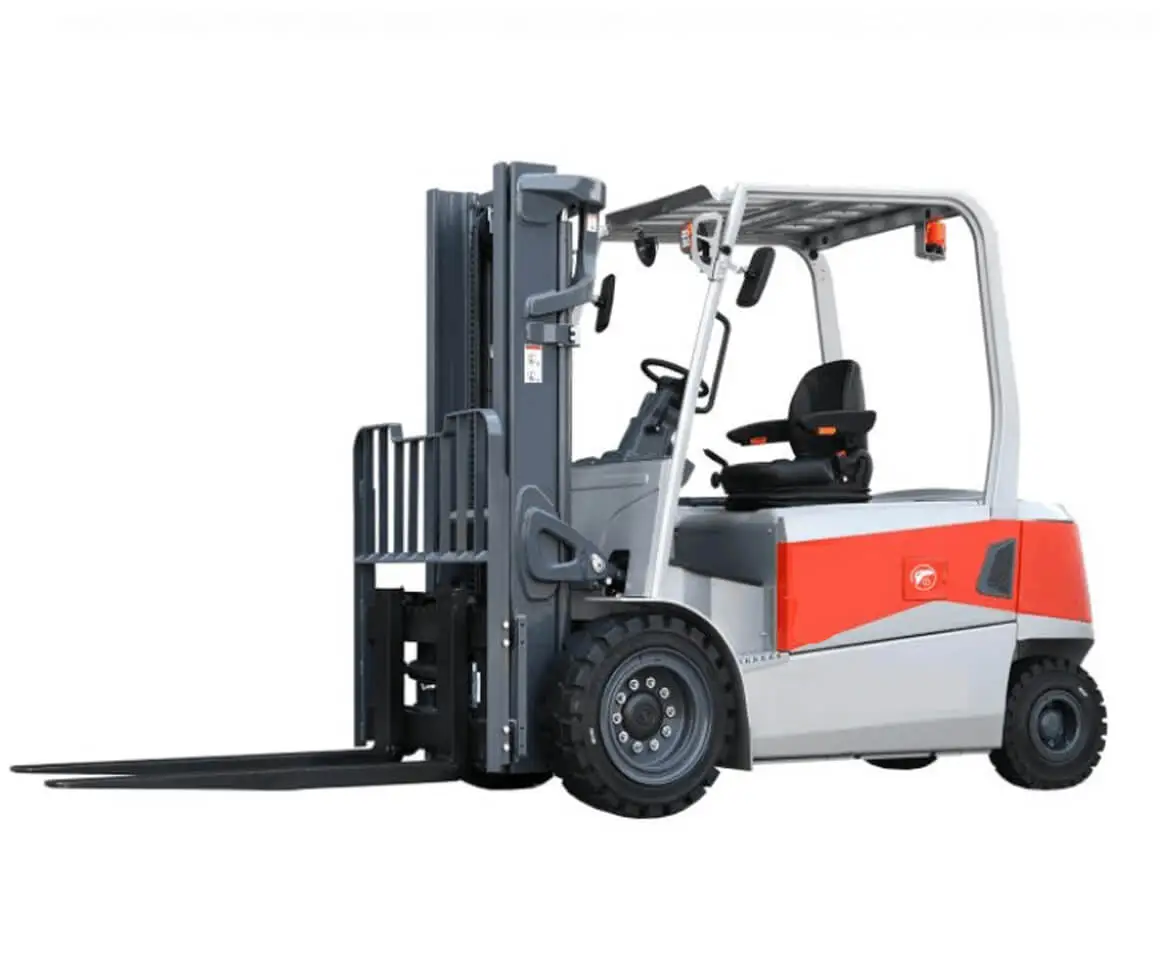

Lithium-ion forklifts offer a range of advantages that improve productivity, reduce costs, and enhance safety in material handling operations. They offer high energy density, providing longer operating hours and reducing the need for frequent battery changes.
Currently we have CPD40/CPD45/CPD50 available. Feel free to contact us for further queries.
| Character | |||
| Model | CPD40 | CPD45 | CPD50 |
| Rated Capacity (kg) | 4000 | 4500 | 5000 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Tyre | |||
| Tyre Type | solid tyre | solid tyre | solid tyre |
| Wheel Number (front/rear) | 2/2 | 2/2 | 2/2 |
| Front Wheel Base (mm) | 1120 | 1120 | 1189 |
| Rear Wheel Base (mm) | 1070 | 1070 | 1070 |
| Tyre (front) | 250-15 | 250-15 | 28×12.5-15 |
| Tyre (rear) | 21×8-9 | 21×8-9 | 21×8-9 |
| Size | |||
| Front Overhang (mm) | 560 | 560 | 560 |
| Mast Tilt Angle (Front/Rear) (°) | 6/8 | 6/8 | 6/8 |
| Height with Mast Retraction (mm) | 2240 | 2240 | 2230 |
| Free Lifting Height (mm) | 150 | 150 | 150 |
| Max. Lifting Height (mm) | 3000 | 3000 | 3000 |
| Max. Height under Working Condition (mm) | 4235 | 4235 | 4225 |
| Overhead Guard Height (mm) | 2275 | 2275 | 2270 |
| Fork Size: thickness × width × length (mm) | 50×150×1070 | 50×150×1070 | 50×150×1070 |
| Fork Arm Carrier, Din Standard | 3A | 3A | 3A |
| Truck Body Length (fork excluded) (mm) | 2920 | 2920 | 2920 |
| Truck Body Width (mm) | 1350 | 1350 | 1500 |
| Turning Radius (mm) | 2580 | 2580 | 2580 |
Lithium battery is more environmentally friendly, maintenance-free, long life and high efficient.
The controller is installed on the balance weight, and the heat balance temperature is low.
Strengthened steering axle with a high supporting point increases the bearing capacity, increased cylinder diameter reduces steering pressure and steering energy consumption.
The center of gravity is reduced through a tail-free structure and thus truck stability is improved.
