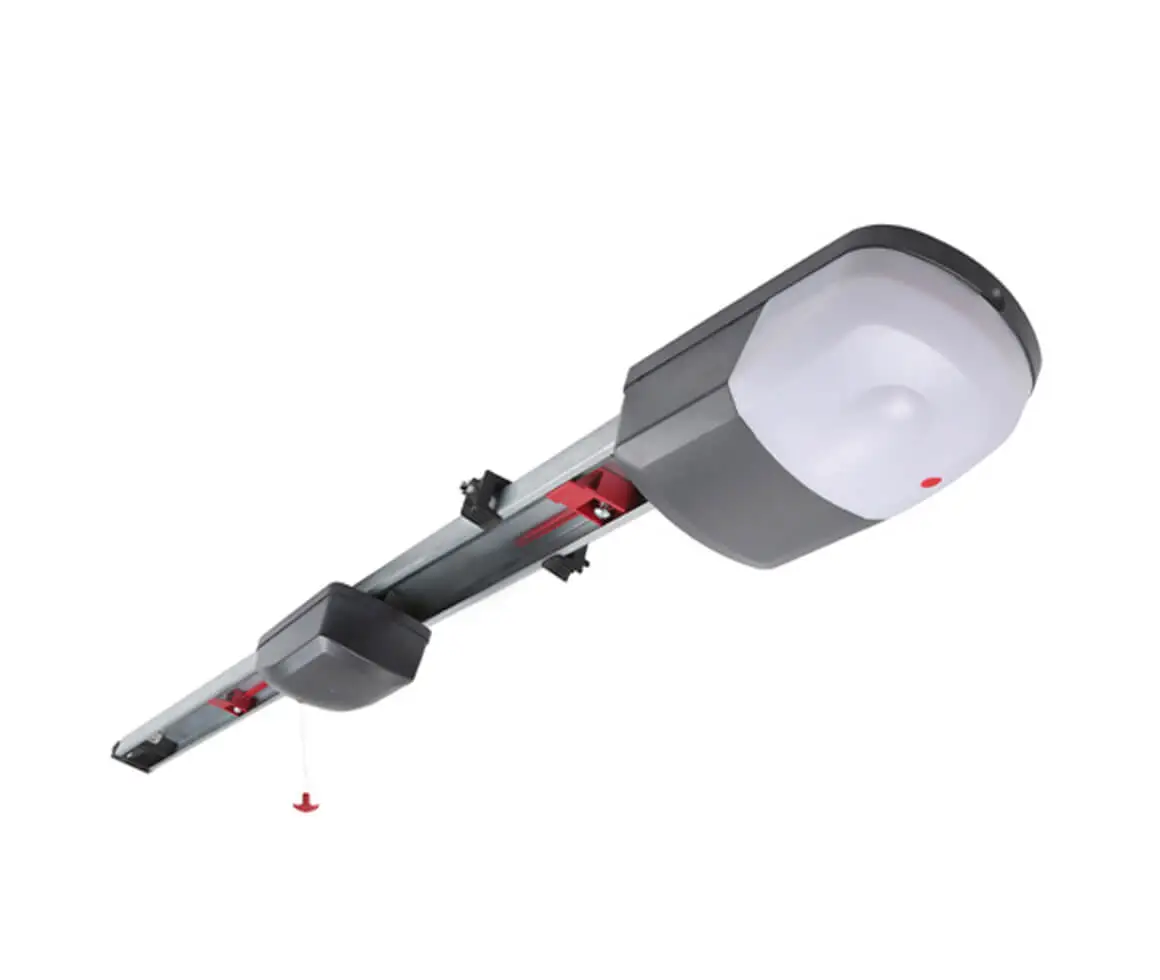

AAVAQ S/SX Series Noise Free Smart WiFi Garage Door Opener DC Motor Automatic Door Operator. Unique patented automation technologies combined with 30 years of industry experience, AAVAQ is a longterm business partner with Meta Doors.
| Motor | 24V DC/60W | 24V DC/80W | 24V DC/120W |
| Transformer | 110VA | 150VA | 200VA |
| Degree of Protection | IP40 | IP40 | IP40 |
| Soft Start/Stop Function | Yes | Yes | Yes |
| Safety Obstruction Sensing | Yes | Yes | Yes |
| Connect to APPLink Smartphone Controller | Available | Available | Available |
| Speed Regulation | Yes | Yes | Yes |
| Auto Close Function | Yes | Yes | Yes |
| Operating Temperature | -20°C to +50°C | -20C to+50°C | -20°C to+50°C |
| Radio | KEELOQ HoppingCode, 433MHz | KEELOQ Hopping Code, 433MHz | KEELOQ Hopping Code, 433MHz |
| TX Capacity On-BoardReceiver | Standard 2, Max. 12 Transmitter, extendable to 527 Transmitter | Standard 2, Max.12 Transmitter, extendable to 527 Transmitter | Standard 2, Max.12 Transmitter, extendable to 527 Transmitter |
| Maximum Distance | 80m | 80m | 80m |
| TX Included in Box | 2 Transmitter lncluded | 2 Transmitter lncluded | 2 Transmitter lncluded |
| Rail | 1.2mm/2.0mm Galvanized Steel+ Fixed Chain | 1-2mnm2.0mm Galvanized Steel Fixed Chain | 1.2mm/2.0mm Galvanized Steel+ Fixed Chain |
| standard Lift Height | ≈2400mm | ≈2400mm | ≈2400mm |
| Height Extendable | 1.2mm Rail Not Extendable. 2.0mm Rail Extendable with 350mm/1000mm | Extendable with 350mm/1000mm | Extendable with 350mm/1000mm |
| Max. Lift Height | ≈3400mm | ≈3650mm | ≈5000mm |
Slow Start / Slow Stop: For extended Life-time of the Opener and the Door
Adaptive Obstruction Sensing: Crushing prevention even without any external safety devices
Speed Regulation: For tailormade installations on any door type
Door Balance Monitor: Continually monitors the spring balance of the door
Adjustable Auto-Close: Makes sure your door is never unintentionally left open
Car-Park Mode: To fit the need in a multiple-car environment
Holiday-Lockup: Extra layer of security during long-term absences
Automatic Open/Close Force Learning: Turns learning the Openers travel and forces into a no-brainer
Separate Courtesy Light Switch: Turns the transmitter into a handy Light-Switch
Adjustable Ventilation Mode: Automatic Ventilation option without compromising security
Defeatable Backjump at Stop: Supports installer in case of difficult installation
Easy to read LCD Monitor: A remarkable amount of functionality at the installer's fingertips
Low Voltage Protection: Protects the Opener in case of un-der-voltage grid instances
Resettable PTC Fuse: Prevents Transformer Overload and dangerous Overheat
Battery Backup: Connector for continuous use even in the event of a power cut
