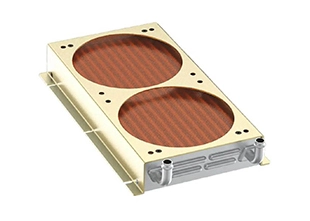

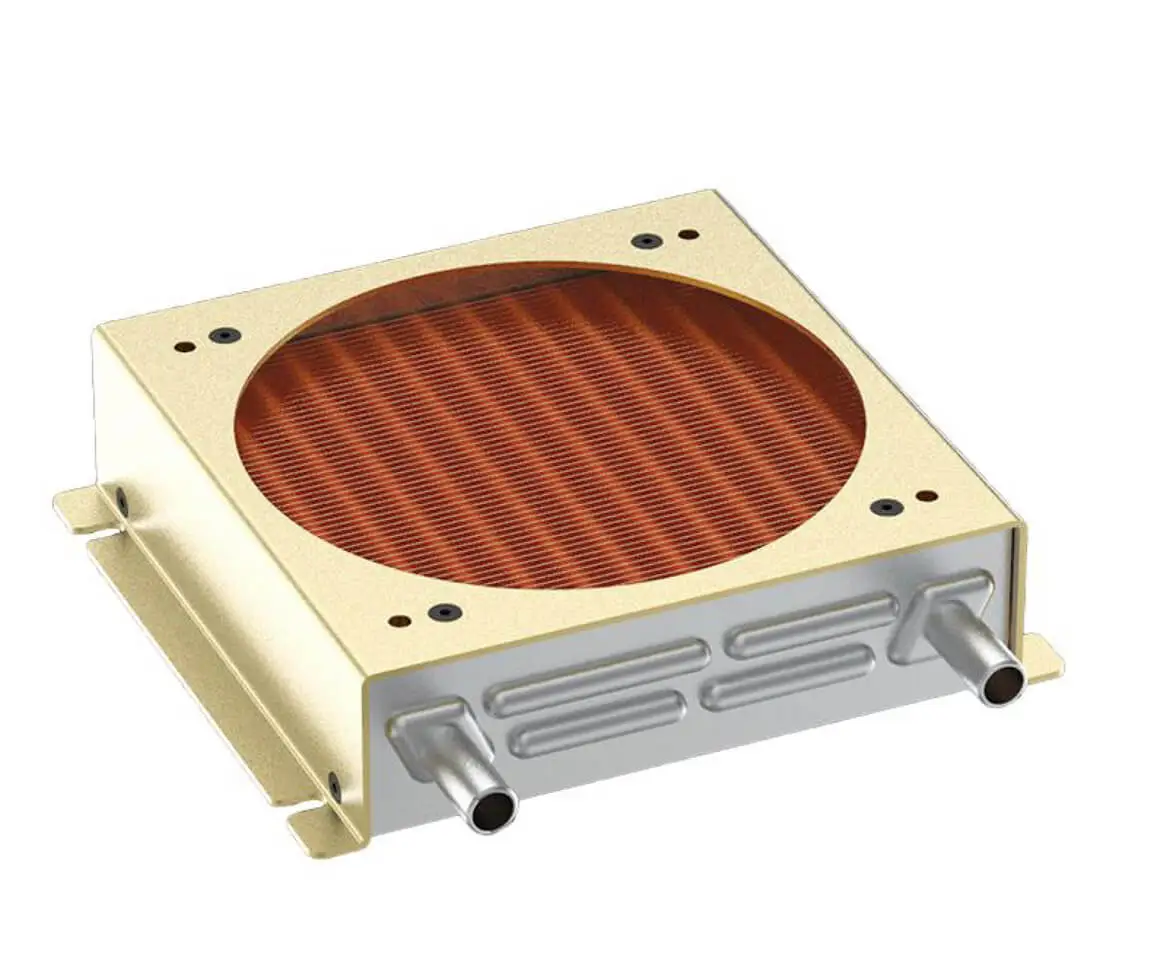

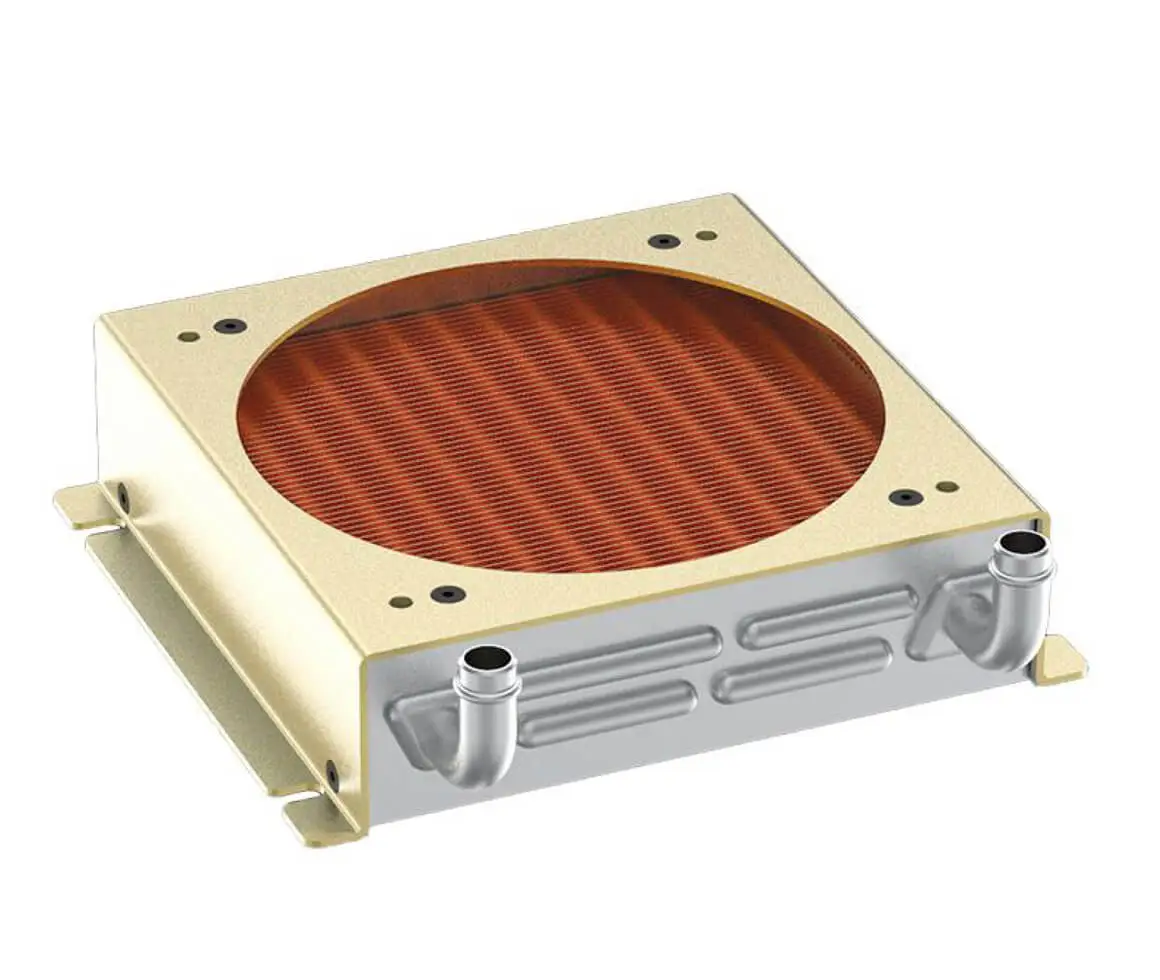

1206 series stainless steel heat exchanger offer a wide range of benefits. It is highly resistant to corrosion, ensuring longevity and reliability in harsh environments.
At CI Industry, we design and manufacture the heat exchanger to meet your precise needs. Feel free to contact us for further queries.
| Model | Size(mm) | Weight(kg) | Fan size(mm) | #of Fans | Installation method | Interface |
| XT-H4S1206-BTWJ | L160*W148*H37 | 0.7 | 120 | 1 | Screw | Ø10 elbow Bump pipe |
| XT-H4S1206-BTZG | L164*W148*H37 | 0.7 | 120 | 1 | Screw | G1/4 Pipe thread |
| XT-H4S1206-BTZJ | L162*W148*H37 | 0.7 | 120 | 1 | Screw | Ø10 Straight Bump pipe |
| XT-H4S1206-BTZN | L156*W148*H37 | 0.7 | 120 | 1 | Screw | Ø10 Straight pipe |
We are proud to introduce the Stainless Steel Series heat exchanger, which utilizes the highest quality stainless steel materials to ensure its corrosion resistance and high strength in a variety of harsh environments, whether it is high temperature, high pressure, or corrosive media, it can cope with the situation and provide long-lasting and stable heat transfer performance. In terms of heat exchange efficiency, we have adopted an advanced heat exchange design, which significantly improves the efficiency of heat transfer, thus effectively reducing energy costs. Its unique flow channel design enables the fluid to be fully mixed inside the heat exchanger to achieve the best heat exchange effect.
