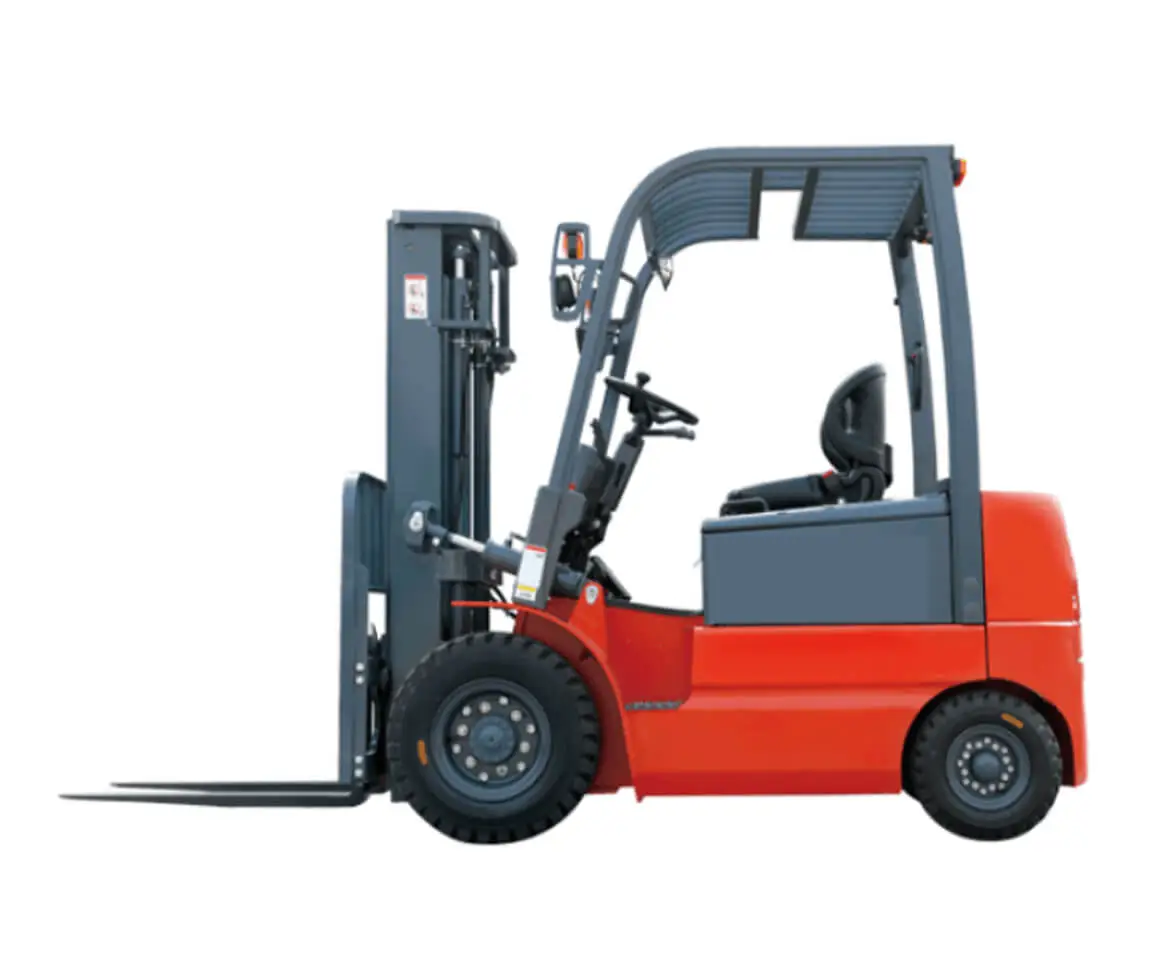

Lead-acid electric forklift trucks offer reliable performance with their robust lead-acid batteries. They produce zero emissions, making them an eco-friendly choice for indoor and outdoor operations.
Currently we have CPD10/CPD15/CPD15/CPD18/CPD20/CPD25 available. Feel free to contact us for further queries.
| Model | CPD10 | CPD15 | CPD15 |
| Configuration Number | HA1/HA2/HA3 | HA1/HA2/HA3 | HC1/HC2/HC3 |
| Rated Capacity (kg) | 1000 | 1500 | 1500 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Power Mode | battery | battery | battery |
| Driving Mode | seated | seated | seated |
| Wheel Base (mm) | 1280 | 1280 | 1390 |
| Tyre | |||
| Tyre Type | pneumatic | pneumatic | pneumatic |
| Wheel Number (front/rear) | 2/2 | 2/2 | 2/2 |
| Front Wheel Base (mm) | 890 | 890 | 890 |
| Rear Wheel Base (mm) | 920 | 920 | 920 |
| Tyre (front) | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR |
| Tyre(rear) | 16×6-8-10PR | 16×6-8-10PR | 16×6-8-10PR |
| Front Overhang (mm) | 410 | 410 | 410 |
| Mast Tilt Angle, F/R (°) | 6/12 | 6/12 | 6/12 |
| Height With Mast Retraction (mm) | 1995 | 1995 | 1995 |
| Free Lifting Height (mm) | 150 | 150 | 150 |
| Max. Lifting Height (mm) | 3000 | 3000 | 3000 |
| Max. Height under Working (mm) | 4040 | 4040 | 4040 |
| Overhead Guard Height (mm) | 2130 | 2130 | 2130 |
| Fork Size thickness×width×length (mm) | 32×100×770 | 35×100×920 | 35×100×920 |
| Fork Arm Carrier, DIN Standard (mm) | 2A | 2A | 2A |
| Truck Body Length (fork excluded) (mm) | 2065 | 2065 | 2175 |
| Truck Body Width (mm) | 1086 | 1086 | 1086 |
| Turning Radius (mm) | 1770 | 1770 | 1880 |
| Battery | |||
| Battery Voltage/Capacity K₅ (V/Ah) | 48/400 | 48/400 | 48/480 |
| Model | CPD18 | CPD20 | CPD25 |
| Configuration Number | HC1/HC2/HC3 | HA1/HA2/HA3 | HA1/HA2/HA3 |
| Rated Capacity (kg) | 1750 | 2000 | 2500 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Power Mode | battery | battery | battery |
| Driving Mode | seated | seated | seated |
| Wheel Base (mm) | 1390 | 1535 | 1535 |
| Tyre | |||
| Tyre Type | pneumatic | pneumatic | pneumatic |
| Wheel Number (front/rear) | 2/2 | 2/2 | 2/2 |
| Front Wheel Base (mm) | 920 | 960 | 960 |
| Rear Wheel Base (mm) | 920 | 950 | 950 |
| Tyre (front) | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR |
| Tyre(rear) | 16×6-8-10PR | 18×7-8-14PR | 18×7-8-14PR |
| Front Overhang (mm) | 410 | 465 | 465 |
| Mast Tilt Angle, F/R (°) | 6/12 | 6/12 | 6/12 |
| Height With Mast Retraction (mm) | 1995 | 2000 | 2000 |
| Free Lifting Height (mm) | 150 | 170 | 170 |
| Max. Lifting Height (mm) | 3000 | 3000 | 3000 |
| Max. Height under Working (mm) | 4040 | 4042 | 404 |
| Overhead Guard Height (mm) | 2130 | 2155 | 2155 |
| Fork Size thickness×width×length (mm) | 35×100×920 | 40×122×920 | 40×122×1070 |
| Fork Arm Carrier, DIN Standard (mm) | 2A | 2A | 2A |
| Truck Body Length (fork excluded) (mm) | 2175 | 2400 | 2400 |
| Truck Body Width (mm) | 1086 | 1170 | 1170 |
| Turning Radius (mm) | 1880 | 2065 | 2065 |
| Battery | |||
| Battery Voltage/Capacity K₅ (V/Ah) | 48/480 | 48/600 | 48/600 |
Improved driver's view
Standard configuration of wide view mast, compact structure of mast and tube pulley block.
Large arc of overhead guard and angle optimized grid tray enlarge driver's upper view.
Improved operating comfort
25mm lowered pedal height, 100% enlarged accelerator panel and 40% enlarged brake pedal improve driver's foot operating comfort.
Super low torque steering unit makes steering light and easy.
Rear handle with horn button ensures safe and comfortable operation while reverse driving.
Mast and rear axle buffering improve driving comfort largely.
Ratchet hand brake has different brake force on slope and ground, reducing driver's fatigue.
