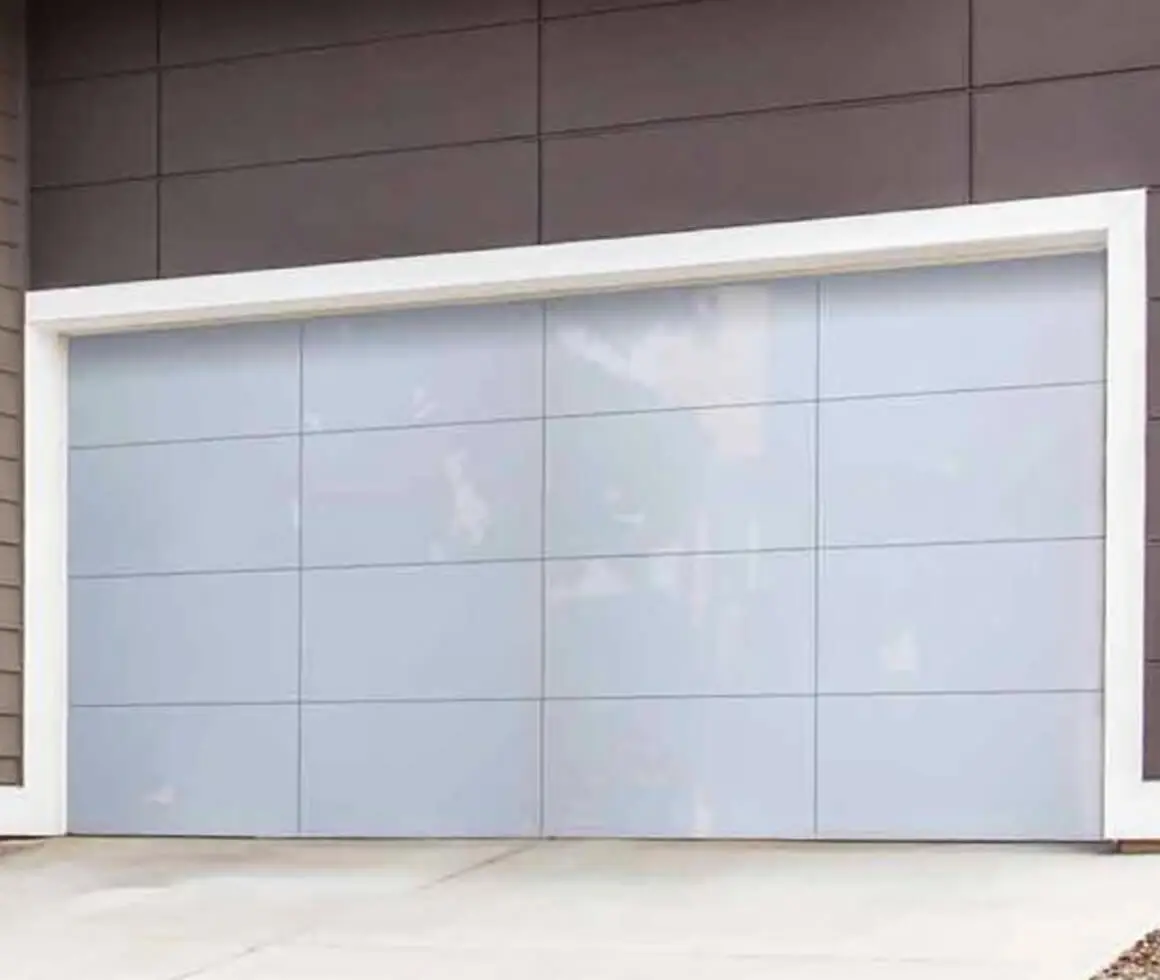

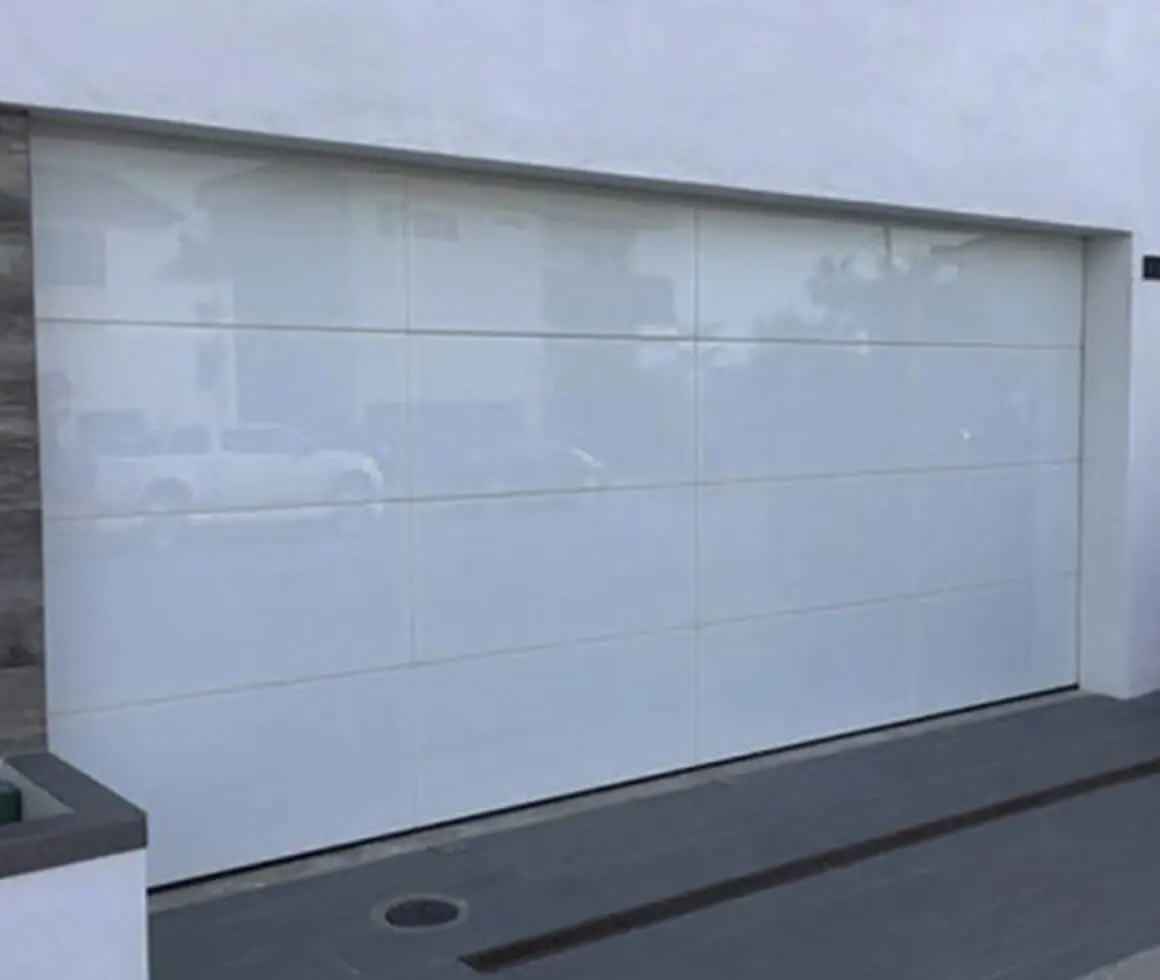

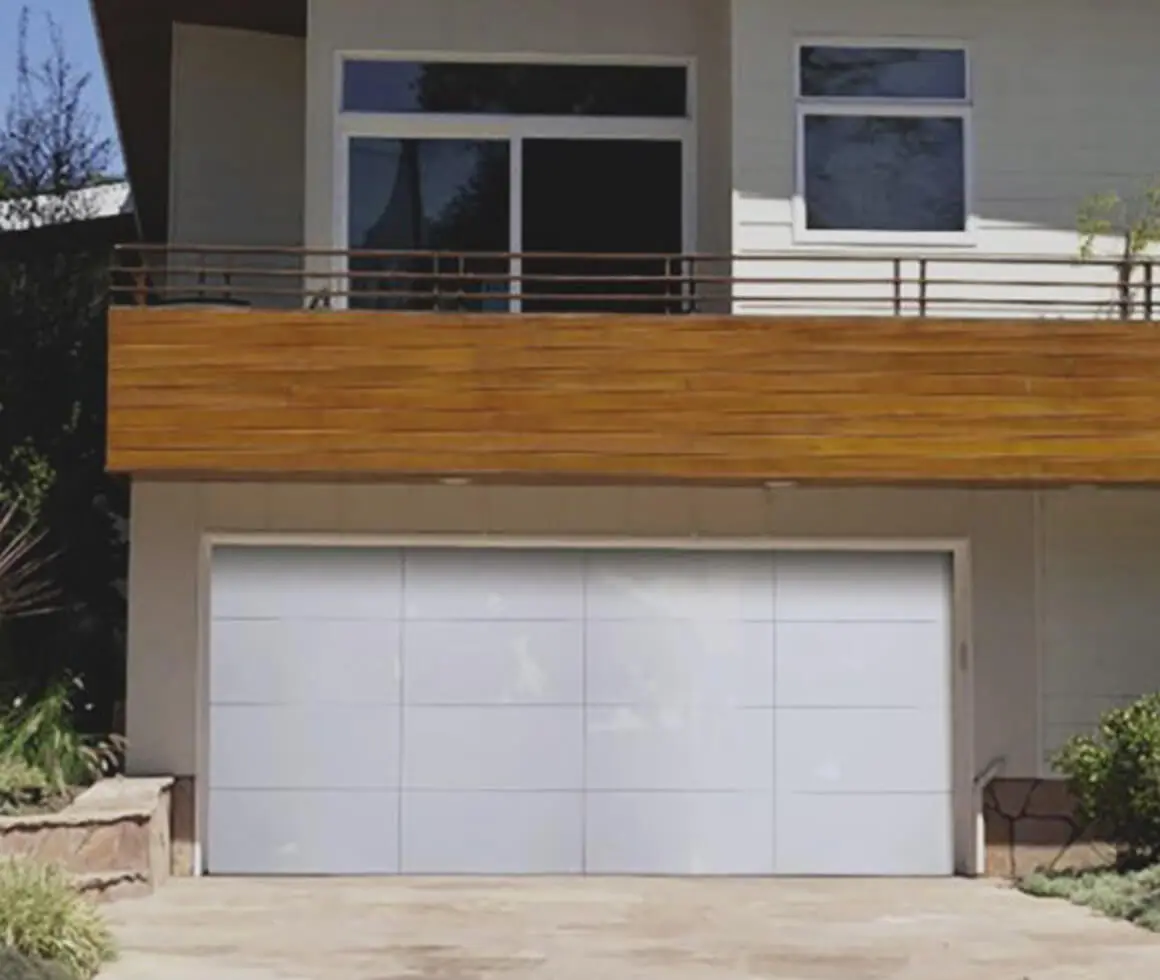

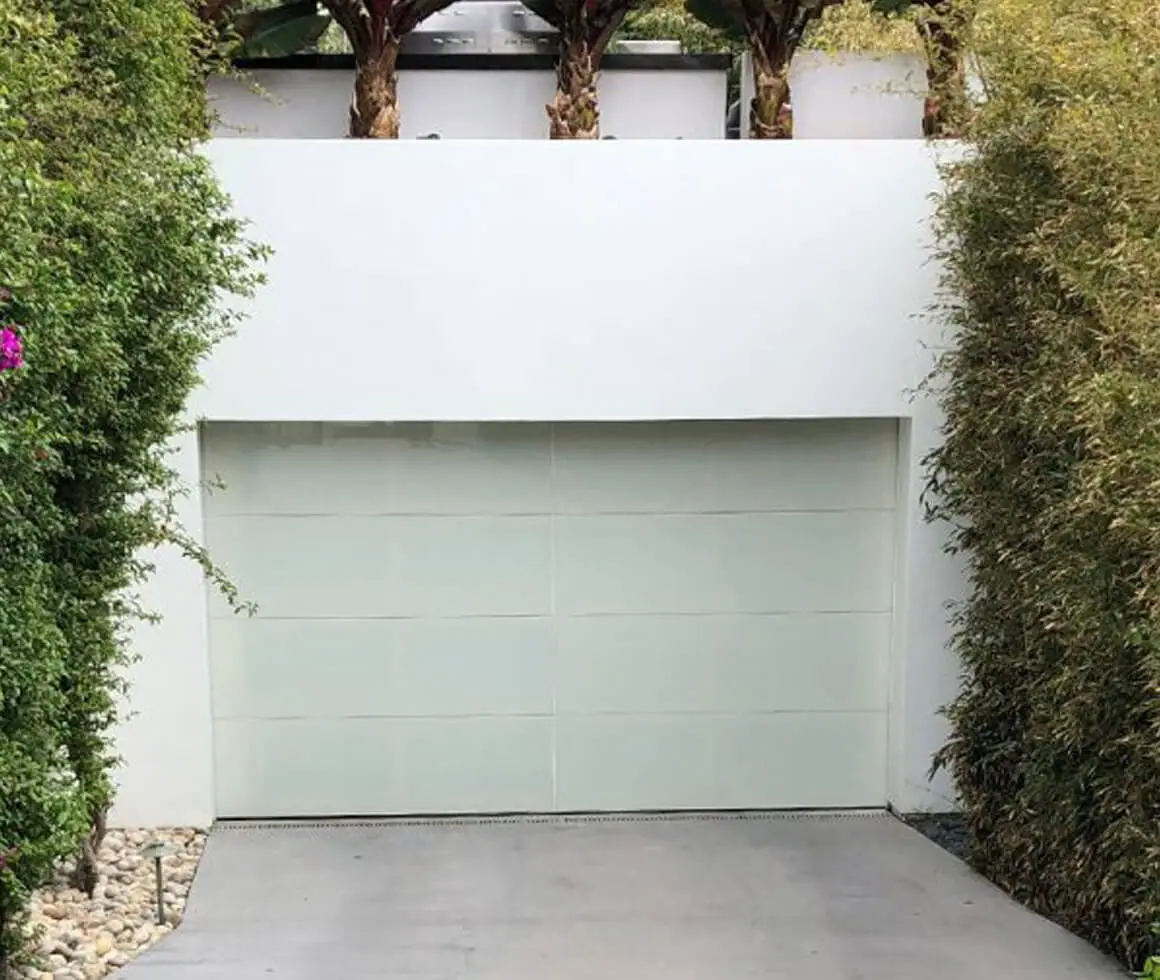

The frameless construction of this Frame-less White Laminated Glass Garage Door gives an unobstructed view, seamlessly blending indoor and outdoor spaces. The white laminated glass offers a translucent quality, allowing natural light to flood in while maintaining privacy.
Feel free to contact us for further queries.
CI Industry, a leading producer of Frame-less White Laminated Glass Garage Doors, is focused on providing cutting-edge and high-quality products to address the varied requirements of commercial and industrial customers. Contact us to select from a variety of sizes and customization options that will perfectly complement your home's architecture.
| Aluminum Finish | Powder Coated & Anodized |
| Frame Thickness | 2 2/5’’ Extruded Aluminum Frame |
| Panel | Non Finger Protection |
| Frame Color | White (standard) Any other colors could be customized |
| Glass | 1/8’’ + 1/8’’ double layer white laminated |
| Insulation | PU insulation is available for customization |
| Hardware | Precision rollers, High carbon torsion spring, safety brackets |
| Track Radius | R12’’ 2’’ or R15’’ 3’’ track |
| Track Lift | Standard Normal lift (High lift, Vertical Lift） |
| Pedestrian door | Available |
Max 24’’ section available for R12’’ track
For the strength and durability of the door, the total length could add up to 20’ wide
Insulated glass garage door panels could increase energy efficiency
Achieve complete privacy and Stylish appearance
| |
| 1. Steel profile with multi-chamber top seal | 9. Horizontal track |
| 2. Multi-chamber side seals | 10. C-profile |
| 3. Bottom profile with thermal break and bottom seal | 11. Sandwich panel |
| 4. Top corner bracket | 12. Double pulley bracket |
| 5. Side support with adjustable roller holder | 13. Universal mounting bracket for horizontal tracks |
| 6. Bottom corner bracket with adjustable roller holder | 14. Handle |
| 7. Hinge | 15. Latch lock (optional) |
| 8. Vertical track | 16. Extension springs |
