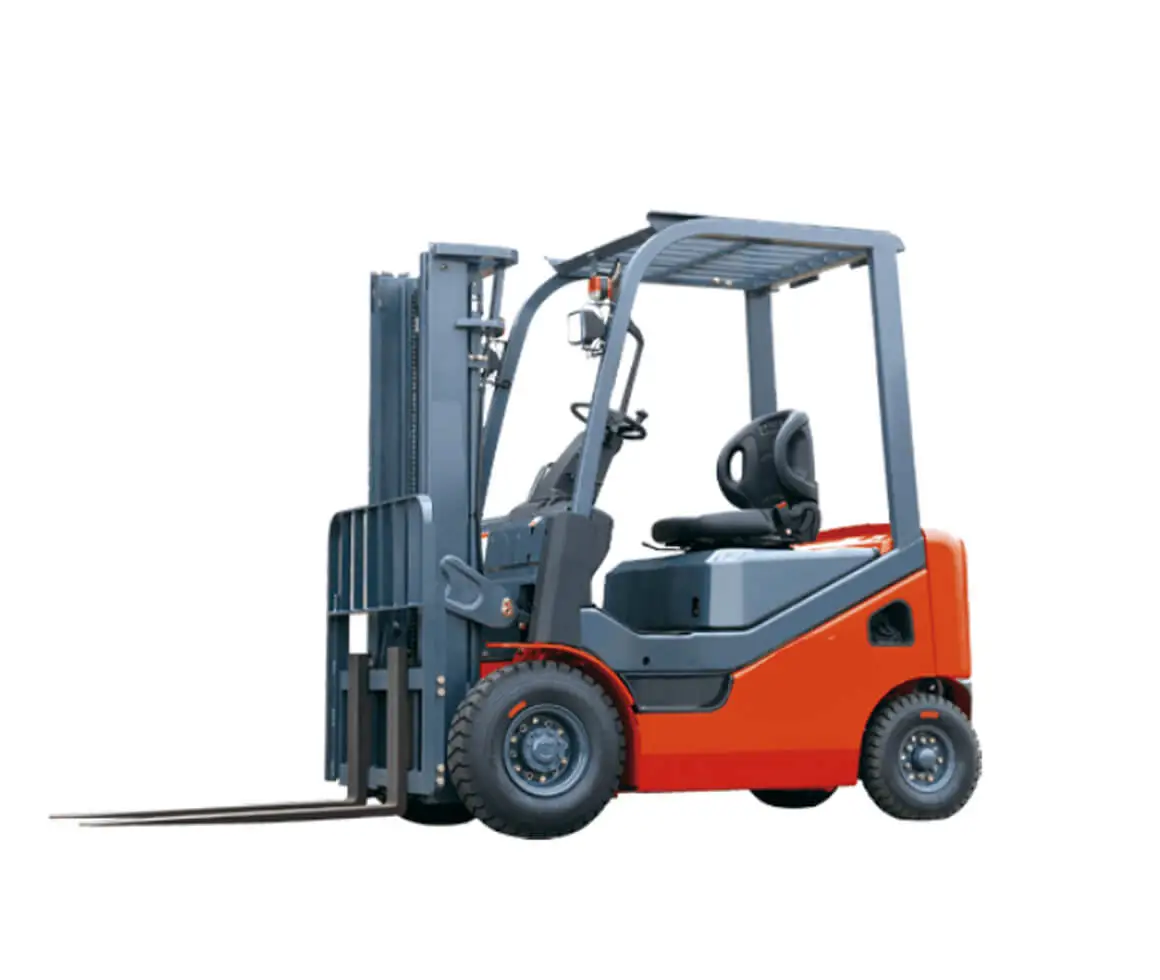

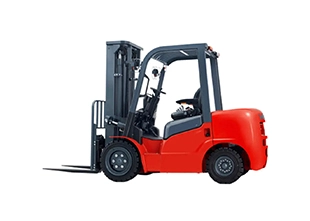

IC Forklift Trucks have a compact design for maneuverability in tight spaces and busy warehouses. They offer exceptional power and performance, ideal for heavy-duty lifting and transporting tasks in various industries.
Currently we have CPC(D)10/CP(Q)(Y)D10, CPC(D)15/CP(Q)(Y)D15, and CPC(D)18/CP(Q)(Y)D18 available. Feel free to contact us for further queries.
| Model | CPC(D)10/ CP(Q)(Y)D10 | CPC(D)15/ CP(Q)(Y)D15 | CPC(D)18/ CP(Q)(Y)D18 |
| Power | Diesel/Gasoline/ LPG/Dual Fuel | Diesel/Gasoline/ LPG/Dual Fuel | Diesel/Gasoline/ LPG/Dual Fuel |
| Rated Capacity (kg) | 1000 | 1500 | 1750 |
| Load Center (mm) | 500 | 500 | 500 |
| Standard Lift Height (mm) | 3000 | 3000 | 3000 |
| Free Lift Height (mm) | 152 | 155 | 155 |
| Overall Length (with/without fork) (mm) | 3197/2277 | 3201/2281 | 3219/2299 |
| Overall Width (mm) | 1070 | 1070 | 1070 |
| Overall Height (overhead guard) (mm) | 2140 | 2140 | 2140 |
| Wheel Base (mm) | 1450 | 1450 | 1450 |
| Total Weight (kg) | 2458 | 2760 | 2890 |
| Engine Model and Main Specification | |||||
| Engine model | Rated torque/ rotating speed (Nm/rpm) | Engine displacement (L) | Engine cylinder number-Bore*stroke | Emission | Engine type |
| ISUZU C240 | 137.7/1800 | 2.369 | 4-86*102 | Euro Stage3A | Diesel |
| GCT K21 | 140/1600 | 2.065 | 4-89*83 | GAS/LPG | |
| GCT K15 | 103/1600 | 1.486 | 4-75.5*83 | GAS/LPG | |
| KUBOTA V2403 | 155.9/1600 | 2.434 | 87*102.4 | EUROII/EPA T4i | Diesel |
| QUANCHAI 4B4-45V32 | 132/1800 | 2.27 | 4-85*100 | Diesel | |
| KUBOTA WG2503 | GAS:163.3/1800 LPG:173.7/1400 | 2.491 | 4-88×102.4 | EAPICARB/EU Stage V | GAS/LPG |
| XINCHANG 4N23G31 | 131/1800 | 2.27 | 4-85*100 | Diesel | |
New H series is the key product which CI INDUSTRY blockbuster launches. Based on the high technology, mass manufacturing capability and experienced sales and services of CI INDUSTRY new H series becomes a milestone of CI INDUSTRY's products which fully consider the needs of the market and customers
Improved performance, superior quality
Vibration 20% reduced
Noise 3dB reduced
Workspace 45% increased
Operator's view 20% improved
Working efficiency 20% improved
Loading capacity increased by over 5%
Stability 5% improved
Reliability 40% improved
Engine hood open angle increased to 80°
