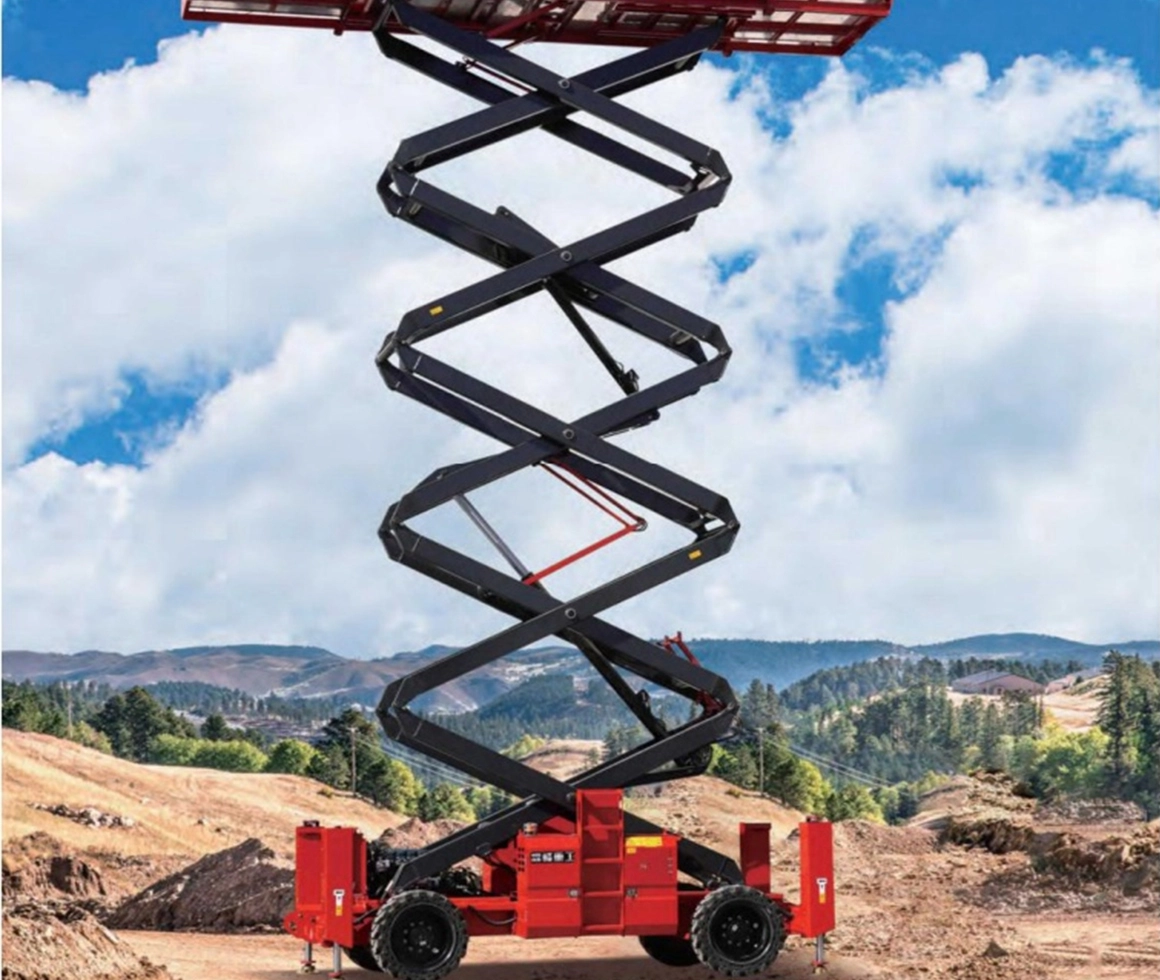

Diesel Rough Terrain Scissor Lift Platform with Outriggers

This Diesel Rough Terrain Scissor Lift Platform with Outriggers has 1 model available. The maximun working height could reach 18000 mm.

Models Available:

(*Details please check Attached Profile)

CFPT1623RTD

Specification of Diesel Rough Terrain Scissor Lift Platform with Outriggers

CFPT1623RTD

SizeCFPT1623RTD
Max.Working Height -A(mm)18000
Max.Platlorm Height -B(mm)16000
Overall Length -C(mm)4870
Overall Width -D(mm)2280
Overall Height(Guardral Unfolded)-E1(mm)3065
Overall Height(Guardrail Folded)-E2(mm)2325
Platorm Size(Length)-F1(mm)3940
Platform Slze(Wdth)-F2(mm)1800
Platform Extension Size (F/B) -G1/G2(mm)1450/1150
Min. Ground Clearance (mm)220
Performance
Load Capacily(kg)680
Load Capacity Of Extended Platform(kg)230
Workers  (Indoor/Outdoor)4/4
Min Turning Radius (Inner Wheel)(mm)4500
Min Turning Radius (Outer Wheel)(mm)6800
Machine Running Speed (Stowed)(km/h)6.1
Machine Running Speed (Raised)(km/h)1.1
Rising/Descending Speed(s)55/55
Gradeability(%)40
Max. Working Slope(°)2/3
Tyre(mm)φ835×290
Power
Hydraulic Oil Tank (L)120
Rated Power(kw)36/36.8
Weight
Weight(kg)8000


Configuration of Diesel Rough Terrain Scissor Lift Platform with Outriggers

Configuration
Standard Configuration* Horn
* Timer
* Strobe Light
* Emergency Descent
* 4x4 Drive
* Driving Confirmation
* Folding Fence
* Buzzer
* Tilt Alarm
* Platform Self-locking Door
* Floating Bridge Chassis
* Lanyard Connection Point
* Extension Platform -- Unidireactional/Bidirectional
* Manual Brake Release
* Automatic Brake System
* Emergency Stop Button
* Non-Marking Tire -- 12m/14m
* Battery Charge(Fast/Slow)--16m
* Weight Drop System
* Oil Pipe Explosion -- Proof System
* Fault Diagnosis System
* Full Proportional Handle Control
* Hydraulic Oil Cooling System -- 16m
* Fixing And Lifting Points
* Automatic Hydraulic Leveling Leg
* Load Sensing System
Optional Configuration* Lithium Battery -- 12m/14m/16m(Diesel)
* 1.83m Work Fence
* Top Limit Protection
* Platform Work Lights
* To Platform AC Power Cord
* Foam Non-marking Tire -- 16m(Electrid/Diesel)
