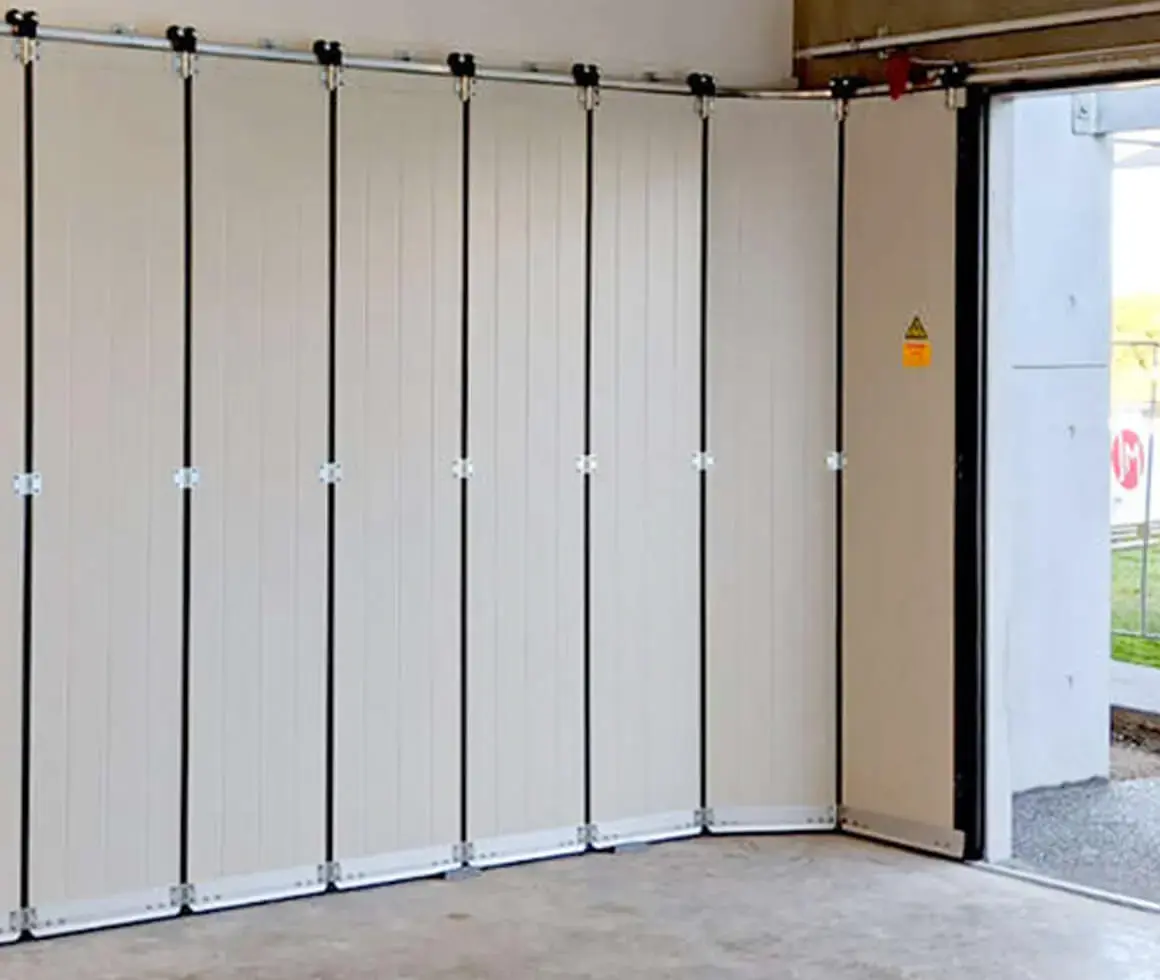

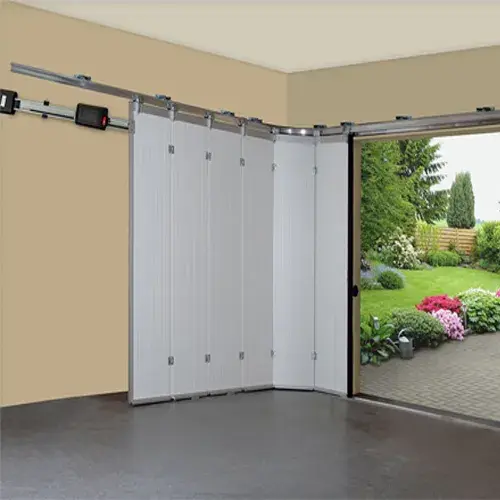

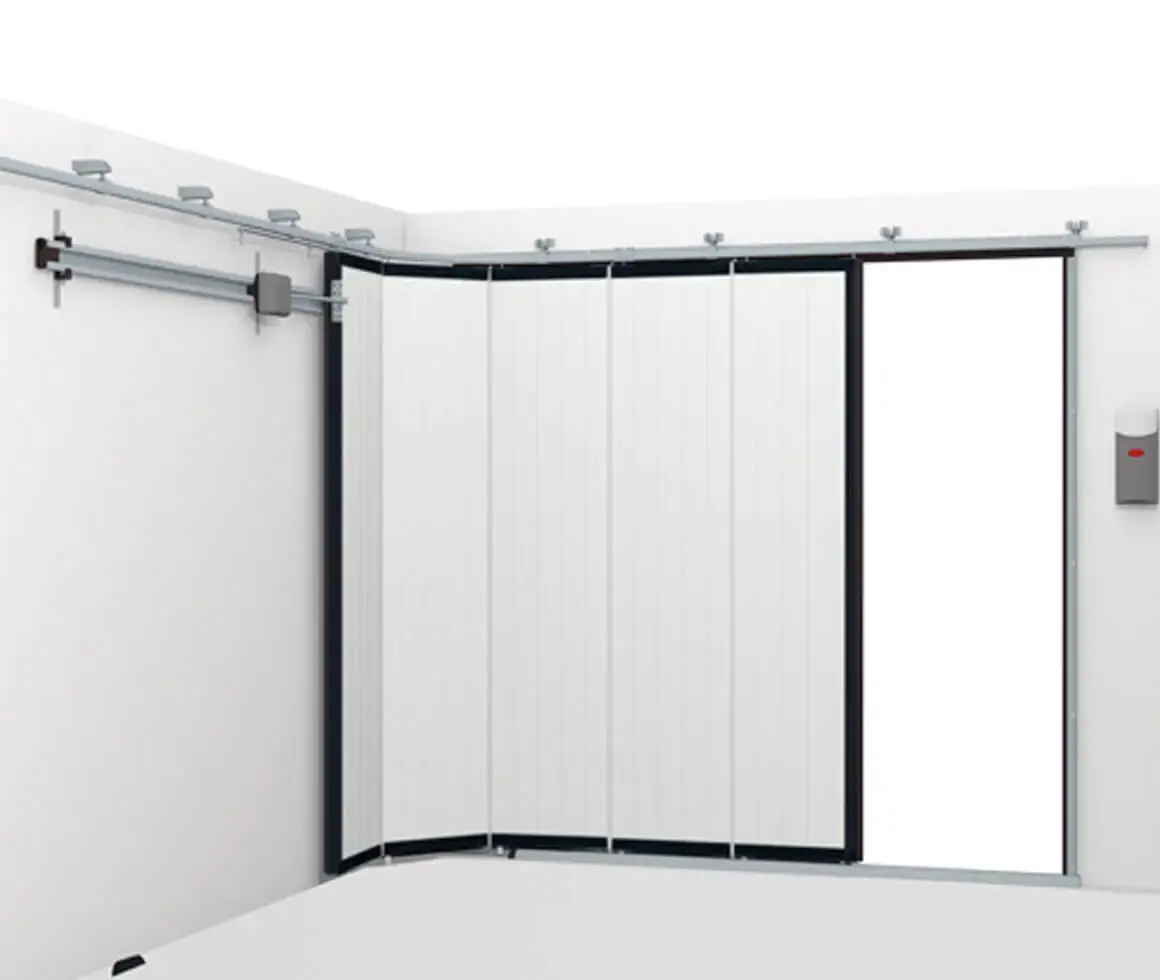

This Side sliding Door operates horizontally, saving valuable ceiling space in your garage. It is ideal for homes with low ceilings or those looking to maximize storage. The side-sliding operation allows for easy entry and exit, especially convenient when parking close to the door.
Contact us today to learn more about our side sliding doors and how they can benefit your business!
| Item model | Max width | Max height | Color | Operation way | Options |
| 002 | 7,000 mm | 7,000 mm | Standard white, as well as other customised RAL colors | Manual operation, motorized operation | Safety senser, UPS, safety brake, video surveillance |
CI Industry, a leading name in Side Sliding Garage Doors, is focused on delivering cutting-edge and high-quality products to cater to the varied requirements of commercial and industrial customers. Reach out to us to choose from a wide range of sizes and customization options that will seamlessly align with your home's architecture.
Burglar resistance
Best level of protection from air infiltration and temperature changes
Affordable price with high-level quality
Long service life: over insulated garage doors are guaranteed for over 10 years of warranty. Our carefully chosen materials assure the sectional garage door rust proof, anti-corrosion, and long life service
Noiseless. The noise level is around GB/TI6730, Rw=20dB only, because we put special long service life rubber tape in between the panels for noise reduction. In the meantime, rubber tape could make the door run more smoothly
Heavy duty aluminium guiding rails and twin roller carriages ensure smooth and reliable door operation
Optional luxury lock for a manually operated sliding door
Low threshold aluminium profile provides perfect water drainage, smooth passage and easy maintenance
Aluminium hardware, top carriages and no spring system provide quiet and easy operation

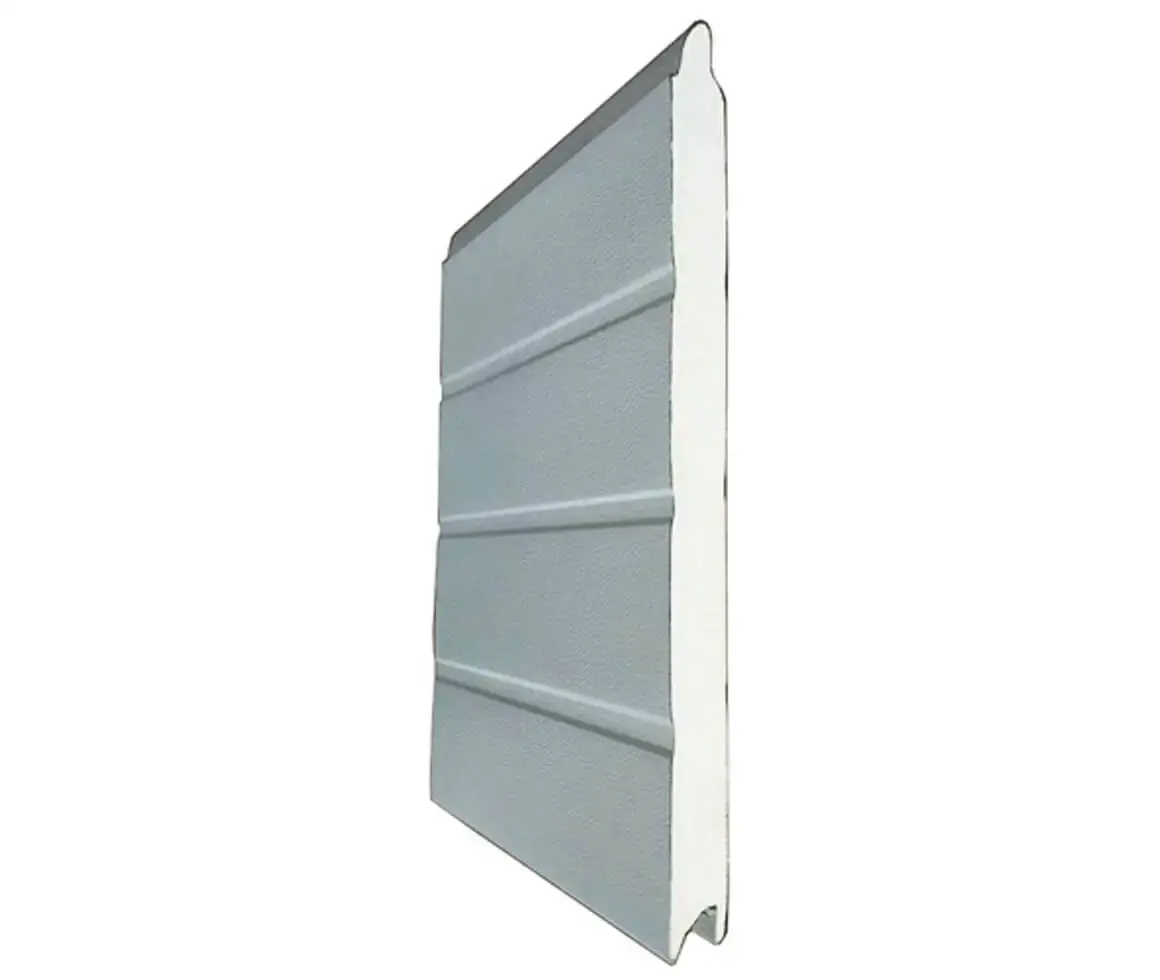

40 mm thick insulated sandwich panels ensure thermal and acoustic insulation

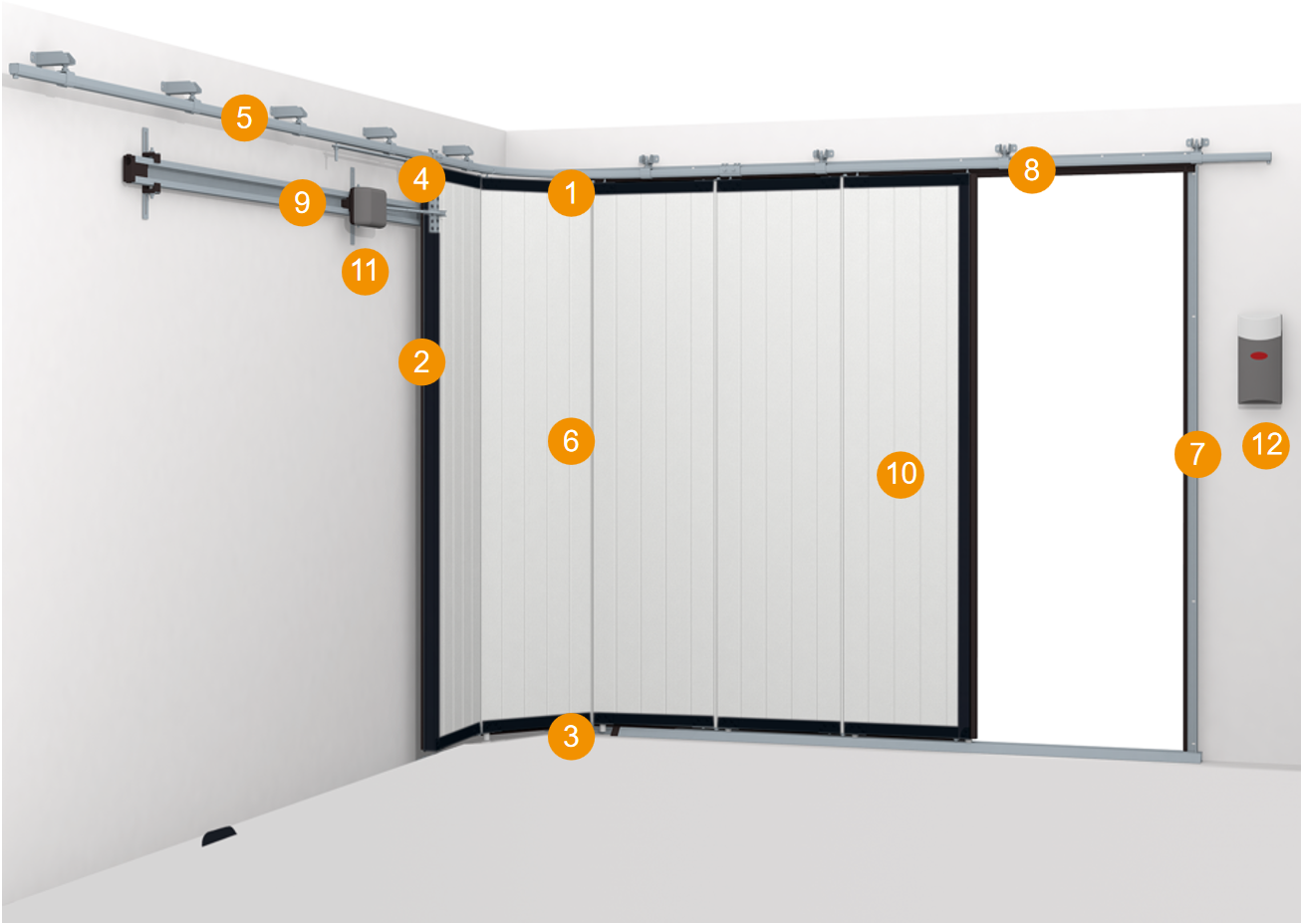

| 1. Top seal |
| 2. Side seals | |
| 3. Bottom seal | |
| 4. Top corner bracket | |
| 5. Top support with adjustable roller holder | |
| 6. Hinge | |
| 7. Vertical track | |
| 8. Horizontal track | |

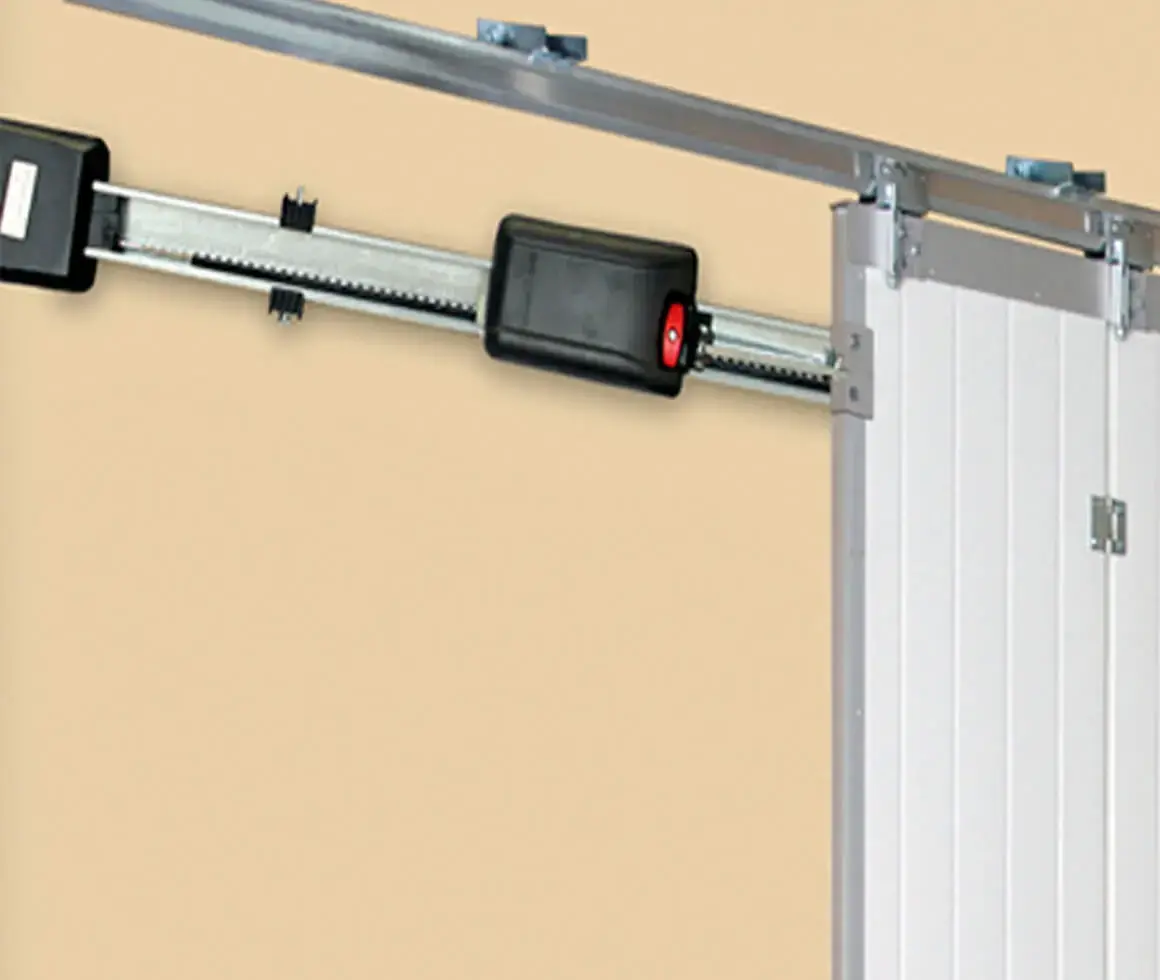

| 9. Motor guide rail | |
| 10. Sandwich panel | |
| 11. Operator | |
| 12. Operation control |
