The construction of this Steel Insulated Garage Door with Side Windows includes robust materials and a durable finish, designed to withstand the harshest weather conditions. Its smooth operation and quiet performance are made possible by state-of-the-art hardware and quality craftsmanship.
Feel free to contact us for further queries.
CI Industry, a prominent manufacturer of Steel Insulated Garage Doors with Side Windows, is dedicated to delivering innovative and high-quality products to fulfil the diverse needs of commercial and industrial clients. Contact us to explore a variety of sizes and customization options that will perfectly align with your home's architectural style.
| Product Name | Steel Garage Door with Side Windows |
| Material Thickness | GA26 Galvanized steel |
| Panel Thickness | 2'' |
| Construction | Galvanized Steel – PU Foam – Galvanized Steel |
| Panel Type | Non Finger Protection |
| Color | Black(RAL9004), Anthracite Grey(RAL7016) |
| Length | Max to 39' |
| Track Radius | R12'' 2'' or R15'' 3'' track |
| Track Lift | Standard lift, High lift, Vertical Lift is available |
| Accessory | Hinges, Rollers, Torsion Springs, Cable drums, all necessary hardware for the installation |
| Window | Size could be customized, with full view or frosted polycarbonate board |
| Pedestrian door | Available |
Max 22'' for each section height
For the strength and durability of the door, the total length could add up to 39' wide
The energy-saving polyurethane is high quality heat insulator,non-absorbing and wear-resistant material with R-value13.73.
Due to heavy-duty exterior and interior steel keeps the door nice appearance, low maintenance durable and reliable.
| |

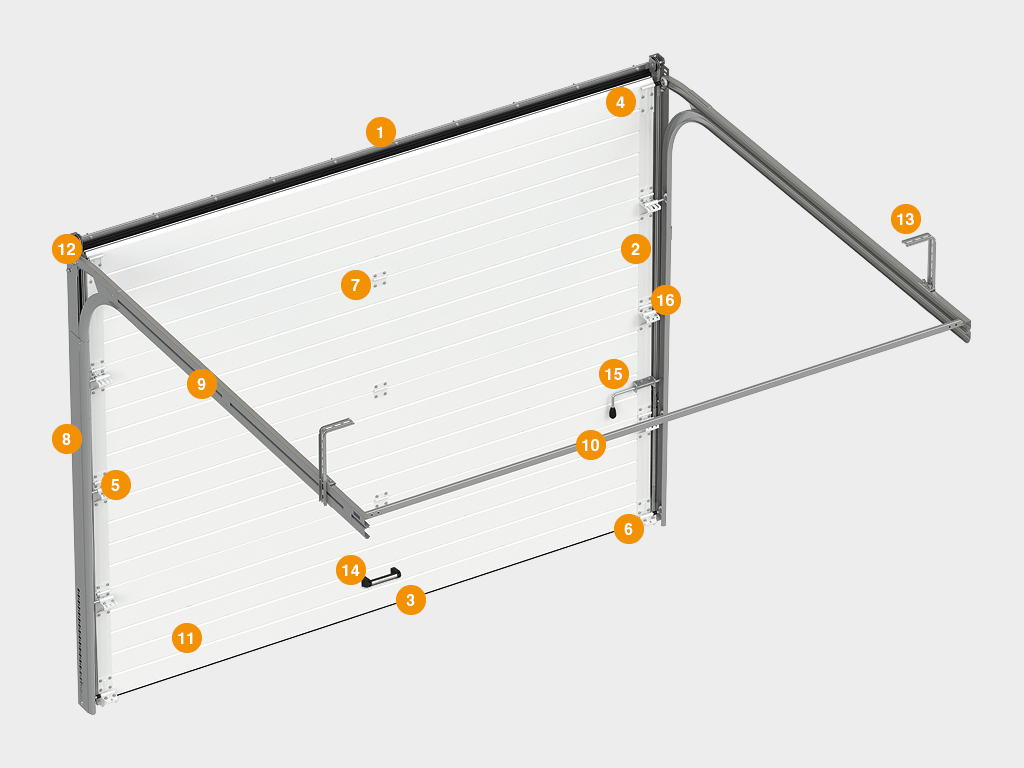

| 1. Steel profile with multi-chamber top seal | 9. Horizontal track |
| 2. Multi-chamber side seals | 10. C-profile |
| 3. Bottom profile with thermal break and bottom seal | 11. Sandwich panel |
| 4. Top corner bracket | 12. Double pulley bracket |
| 5. Side support with adjustable roller holder | 13. Universal mounting bracket for horizontal tracks |
| 6. Bottom corner bracket with adjustable roller holder | 14. Handle |
| 7. Hinge | 15. Latch lock (optional) |
| 8. Vertical track | 16. Extension springs |
