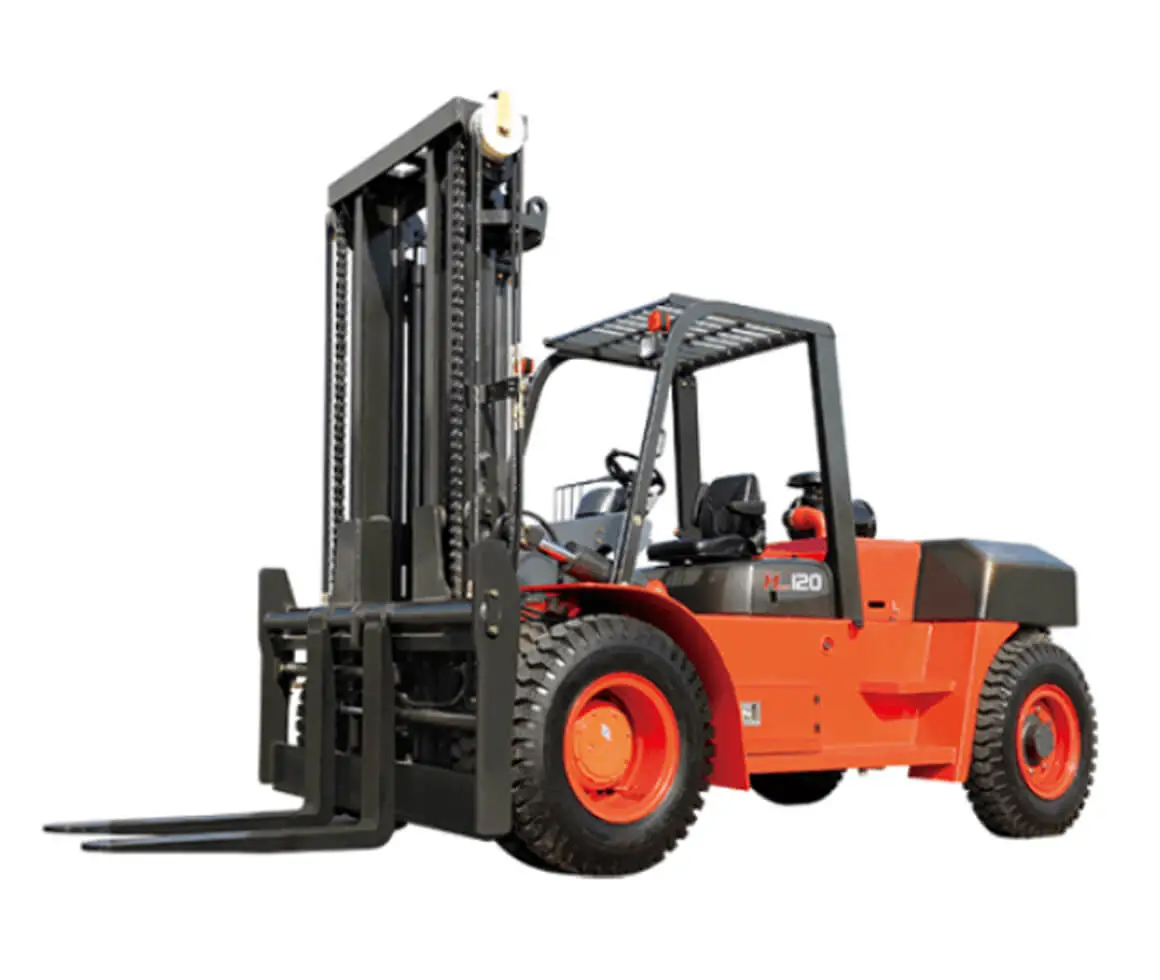

The heavy forklift stands as a titan, boasting unparalleled lifting capacities that effortlessly hoist massive loads with ease and efficiency. Built to withstand the rigors of continuous use, they require minimal maintenance, ensuring they are always ready for work when you need them.
Currently we have CPCD120-WX-06Ill and CPCD120-CU-06III available. Feel free to contact us for further queries.
| Model | CPCD120-WX-06Ill | CPCD120-CU-06III |
| Load Center (mm) | 600 | 600 |
| Lifting Capacity (kg) | 12000 | 12000 |
| Lifting Height (mm) | 3000 | 3000 |
| Liting Speed (at rated load) (mm/s) | 350 | 350 |
| Lowering Speed(unloaded) (mm/s) | 300-600 | 300-600 |
| Mast Tilt (forward/backward) (Grad) | 6/12 | 6/12 |
| Engine | FAWDE/Cummins | FAWDE/Cummins |
| Overall Length(with fork) (mm) | 4400(5770) | 4400(5770) |
| Overall width (mm) | 2350 | 2350 |
| Mast height (retracted) (mm) | 317 | 317 |
Drivelines: Cummins engine or Wuxi diesel engine meeting national level 3 emission standard is assembled on the truck, with strong drive power and good weather-resistance.
Transmission: The model is assembled with originally designed CIINDUSTRY automatic transmission with a market inventory of 5000, which is safe and reliable, and easy to maintain.
