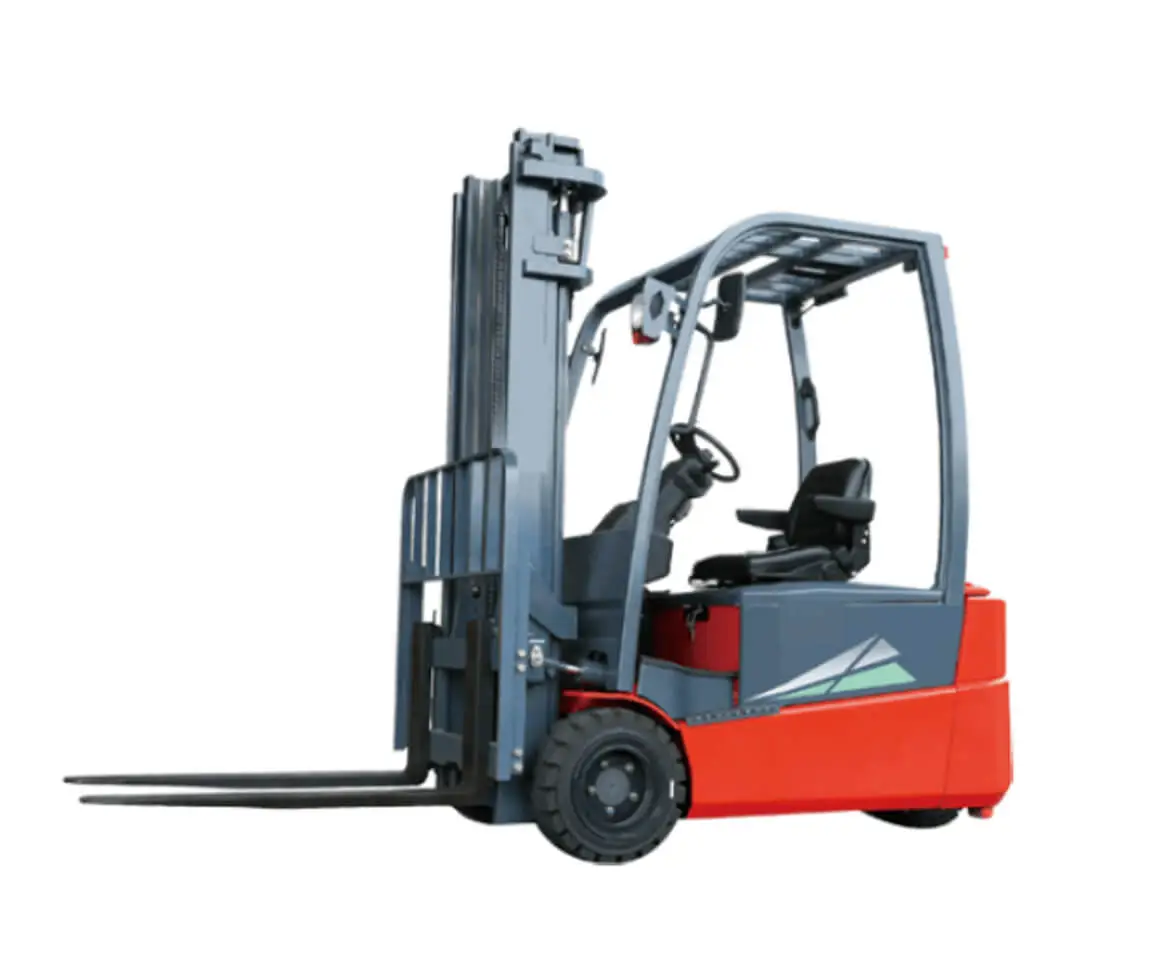

Lead-acid electric forklift trucks offer reliable performance with their robust lead-acid batteries. These batteries have a long service life and can withstand rigorous use in various industrial applications.
Currently we have CPD15/CPD16/CPD18 available. Feel free to contact us for further queries.
| Model | CPD15 | CPD16 | CPD18 |
| Configuration Number | SQ-GB1/GB2(P) | SQ-GB1/GB2(P) | SQ-GB1/GB2(P) |
| Rated Capacity (kg) | 1500 | 1600 | 1750 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Power Type | baterry | baterry | baterry |
| Driving Mode | seated | seated | seated |
| Wheel Base (mm) | 1292 | 1400 | 1400 |
| Tyre | |||
| Tyre Type Load Distance | SE 365 | SE 365 | SE 365 |
| Mast Tilt Angle, F/R (°) | 3/7 | 3/7 | 3/7 |
| Height With Mast Retraction (mm) | 2175 | 2175 | 2175 |
| Free Lifting Height (mm) | 90 | 90 | 90 |
| Max. Lifting Height (mm) | 3300 | 3300 | 3300 |
| Max. Height under Working (mm) | 4345 | 4345 | 4345 |
| Overhead Guard Height (mm) | 2040 | 2040 | 2040 |
| Fork Size thickness×width×length (mm) | 35×100×920 | 35×100×920 | 35×100×920 |
| Fork Carriage to DIN 15173 A/B (mm) | 2A | 2A | 2A |
| Truck Body Length (fork excluded) (mm) | 1842 | 1950 | 1950 |
| Truck Body Width (mm) | 1060 | 1060 | 1120 |
| Turning Radius (mm) | 1477 | 1585 | 1585 |
| Battery | |||
| Battery Voltage/Capacity K₅ (V/Ah) | 48/440 | 48/600 | 48/600 |
| Model | CPD18 | CPD20 |
| Configuration Number | SQ-GD1/GD2(P) | SQ-GD1/GD2(P) |
| Rated Capacity (kg) | 1750 | 1750 |
| Load Center Distance (mm) | 500 | 500 |
| Power Type | baterry | baterry |
| Driving Mode | seated | seated |
| Wheel Base (mm) | 1508 | 1508 |
| Tyre | ||
| Tyre Type Load Distance | SE 365 | SE 365 |
| Mast Tilt Angle, F/R (°) | 3/7 | 3/7 |
| Height With Mast Retraction (mm) | 2175 | 2175 |
| Free Lifting Height (mm) | 90 | 90 |
| Max. Lifting Height (mm) | 3300 | 3300 |
| Max. Height under Working (mm) | 4345 | 2045 |
| Overhead Guard Height (mm) | 2040 | 4345 |
| Fork Size thickness×width×length (mm) | 35×100×920 | 40×122×920 |
| Fork Carriage to DIN 15173 A/B (mm) | 2A | 2A |
| Truck Body Length (fork excluded) (mm) | 1950 | 2068 |
| Truck Body Width (mm) | 1120 | 1120 |
| Turning Radius (mm) | 1693 | 1703 |
| Battery | ||
| Battery Voltage/Capacity K₅ (V/Ah) | 48/720 | 48/720 |
Comfortable
Magnetic brake on driving axle, the truck can automatically park on a slope or flat.
The rear handle with horn function contributes to a stable sitting pose when travelling backwards and driving comfort and safety.
Automobile-type direction switches effectively improve driving comfort levels.
Sensor-operated power steering(option), more comfortable.
Side battery as an option, easy replacement.
Finger switch as an option, more speedy operation.
Improved driver's view
A newly designed wide-view mast with special chains enlarges the operator's view effectively.
The larger arc shape of the overhead guard and grid tray with proper angle increase the operator's upward view.
