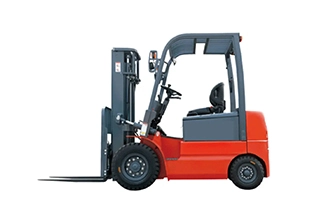

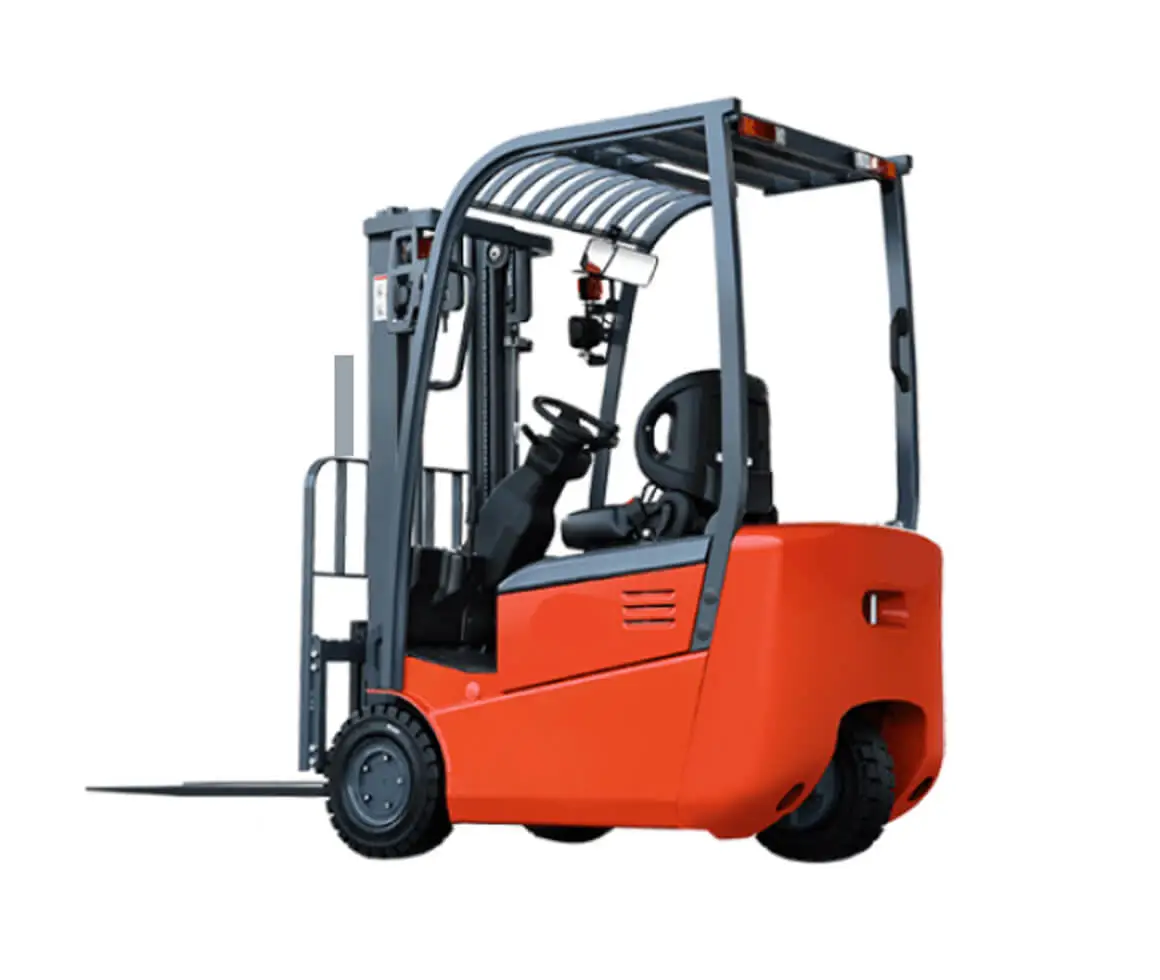

Lead-acid electric forklift trucks offer reliable performance with their robust lead-acid batteries. They can be easily charged using standard charging equipment, allowing for flexible operation schedules.
Currently we have CPD10/CPD15/CPD18 available. Feel free to contact us for further queries.
| Model | CPD10 | CPD15 | CPD18 |
| Configuration Number | GC1/GC2(P) | GC1/GC2(P) | GC1/GC2(P) |
| Rated Capacity (kg) | 1000 | 1500 | 1750 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Power Type | baterry | baterry | baterry |
| Driving Mode | seated | seated | seated |
| Wheel Base (mm) | 1380 | 1380 | 1380 |
| Tyre | |||
| Tyre Type Front Overhang | SE/Pneumatic | SE/Pneumatic | SE/Pneumatic |
| Mast Tilt Angle, F/R (°) | 6/8 | 6/8 | 6/8 |
| Height With Mast Retraction (mm) | 1985 | 1985 | 1985 |
| Free Lifting Height (mm) | 155 | 155 | 155 |
| Max. Lifting Height (mm) | 3000 | 3000 | 3000 |
| Max. Height under Working (mm) | 4030 | 4030 | 4030 |
| Overhead Guard Height (mm) | 2130 | 2130 | 2130 |
| Fork Size thickness×width×length (mm) | 32×100×770 | 35×100×920 | 35×100×920 |
| Fork Carriage to DIN 15173 A/B (mm) | 2A | 2A | 2A |
| Truck Body Length (fork excluded) (mm) | 2070 | 2070 | 2070 |
| Truck Body Width (mm) | 1086 | 1086 | 1086 |
| Turning Radius (mm) | 1750 | 1750 | 1750 |
| Battery | |||
| Battery Voltage/Capacity K₅ (V/Ah) | 480(max600) | 480(max600) | 480(max600) |
| Model | CPD10 | CPD15 | CPD18 |
| Configuration Number | GD1/GD2/GD3(P) | GD1/GD2/GD3(P) | GD1/GD2/GD3(P) |
| Rated Capacity (kg) | 1000 | 1500 | 1750 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Power Type | baterry | baterry | baterry |
| Driving Mode | seated | seated | seated |
| Wheel Base (mm) | 1380 | 1380 | 1380 |
| Tyre | |||
| Tyre Type Front Overhang | SE/Pneumatic | SE/Pneumatic | SE/Pneumatic |
| Mast Tilt Angle, F/R (°) | 6/8 | 6/8 | 6/8 |
| Height With Mast Retraction (mm) | 1985 | 1985 | 1985 |
| Free Lifting Height (mm) | 155 | 155 | 155 |
| Max. Lifting Height (mm) | 3000 | 3000 | 3000 |
| Max. Height under Working (mm) | 4030 | 4030 | 4030 |
| Overhead Guard Height (mm) | 2130 | 2130 | 2130 |
| Fork Size thickness×width×length (mm) | 32×100×770 | 35×100×920 | 35×100×920 |
| Fork Carriage to DIN 15173 A/B (mm) | 2A | 2A | 2A |
| Truck Body Length (fork excluded) (mm) | 2070 | 2070 | 2070 |
| Truck Body Width (mm) | 1086 | 1086 | 1086 |
| Turning Radius (mm) | 1750 | 1750 | 1750 |
| Battery | |||
| Battery Voltage/Capacity K₅ (V/Ah) | 480(max600) | 480(max600) | 480(max600) |
Reliable AC Traction motor and AC Pump motor which are brushless and maintenance free.
Reliable AC Traction controller and AC Pump controller self-protecting and maintenance free.
Interactive communication multifunctional LED meter with friendly interface, display mass information, password handing and maintenance free.
Standard CAN BUS interface for simple and reliable communication.
Travel speed and lifting speed closed loop control.
Powerful security, self-braking on ramp.
New technology of dynamic signal load sensing in hydraulic system.
Travel speed normal/cutback choice function.
Electromagnetic compatibility reaches international standards.
