Despite its modern appearance, maintaining a Frameless Mirror Glass Garage Door is relatively simple. Regular cleaning with a glass cleaner and a soft cloth is all it takes to keep the door looking new.
Feel free to contact us for further queries.
CI Industry, a top manufacturer of Frameless Mirror Glass Garage Doors, is committed to providing state-of-the-art and high-quality products to cater to the varied needs of commercial and industrial customers. Get in touch with us to choose from a wide selection of sizes and customization options that will perfectly suit your home’s design.
| Aluminum Finish | Powder Coated & Anodized |
| Frame Thickness | 2 2/5'' Extruded Aluminum Frame |
| Panel | Non Finger Protection |
| Frame Color | White & Black (standard) Any other colors could be customized |
| Glass | 1/5'' single layer & 1/8'' + 1/8'' double layer |
| Insulation | PU insulation is available for customization |
| Hardware | Precision rollers, High carbon torsion spring, safety brackets |
| Track Radius | R12'' 2'' or R15'' 3'' track |
| Track Lift | Standard Normal lift (High lift, Vertical Lift） |
| Pedestrian door | Available |
Max 24’’ section available for R12’’ track
For the strength and durability of the door, the total length could add up to 20’ wide
Achieve better balance between privacy and the transmission of light
Insulated glass garage door panels are available for increased energy efficiency
| |

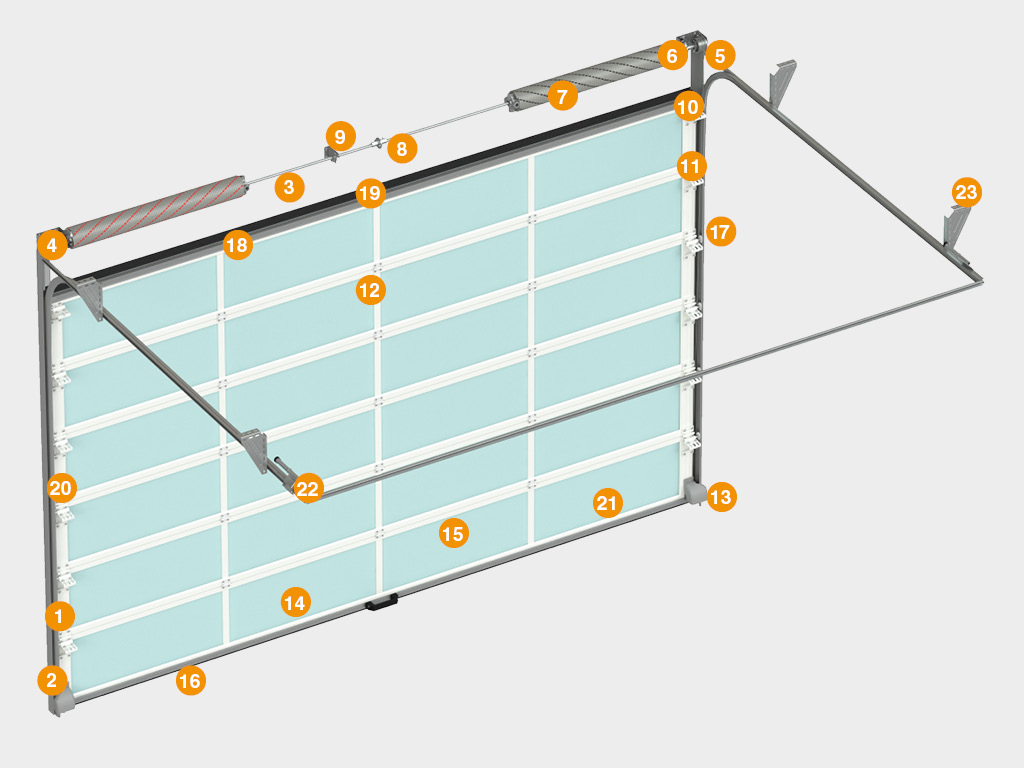

| 1. Vertical track | 13. Cable break safety device |
| 2. Vertical angle | 14. Bottom profile |
| 3. Cylindrical shaft | 15. Panoramic panel |
| 4. Spring safety device | 16. Bottom seal |
| 5. Drum | 17. Side seal |
| 6. U-shaped bracket | 18. Top profile |
| 7. Counterbalancing mechanism (torsion spring) | 19. Top seal |
| 8. Steel coupler | 20. Perforated side cap |
| 9. Internal support bracket | 21. Full-vision impact-resistant filling |
| 10. Top support with roller holder | 22. Spring bumper |
| 11. Side support with roller holder | 23. Universal mounting bracket for horizontal tracks |
| 12. Hinge | |
