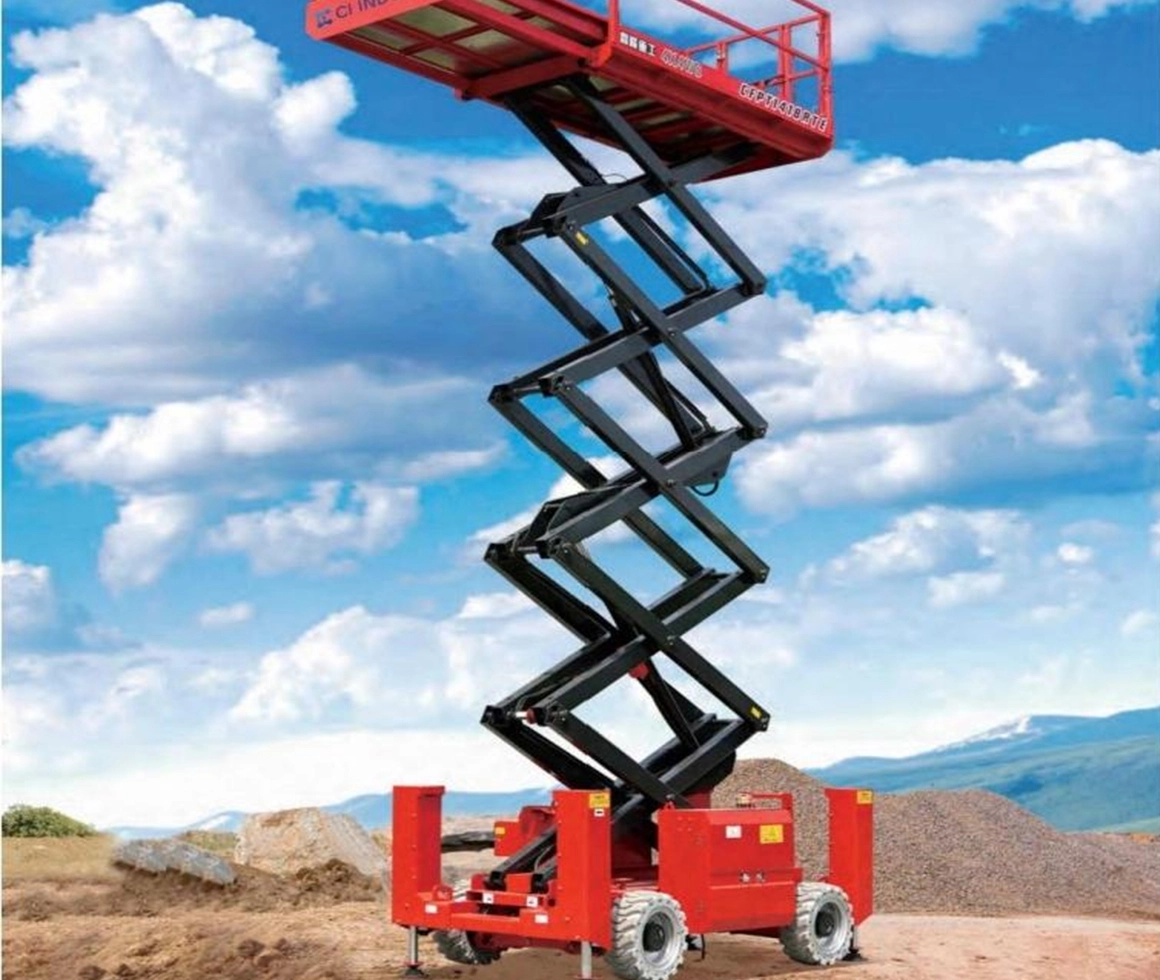

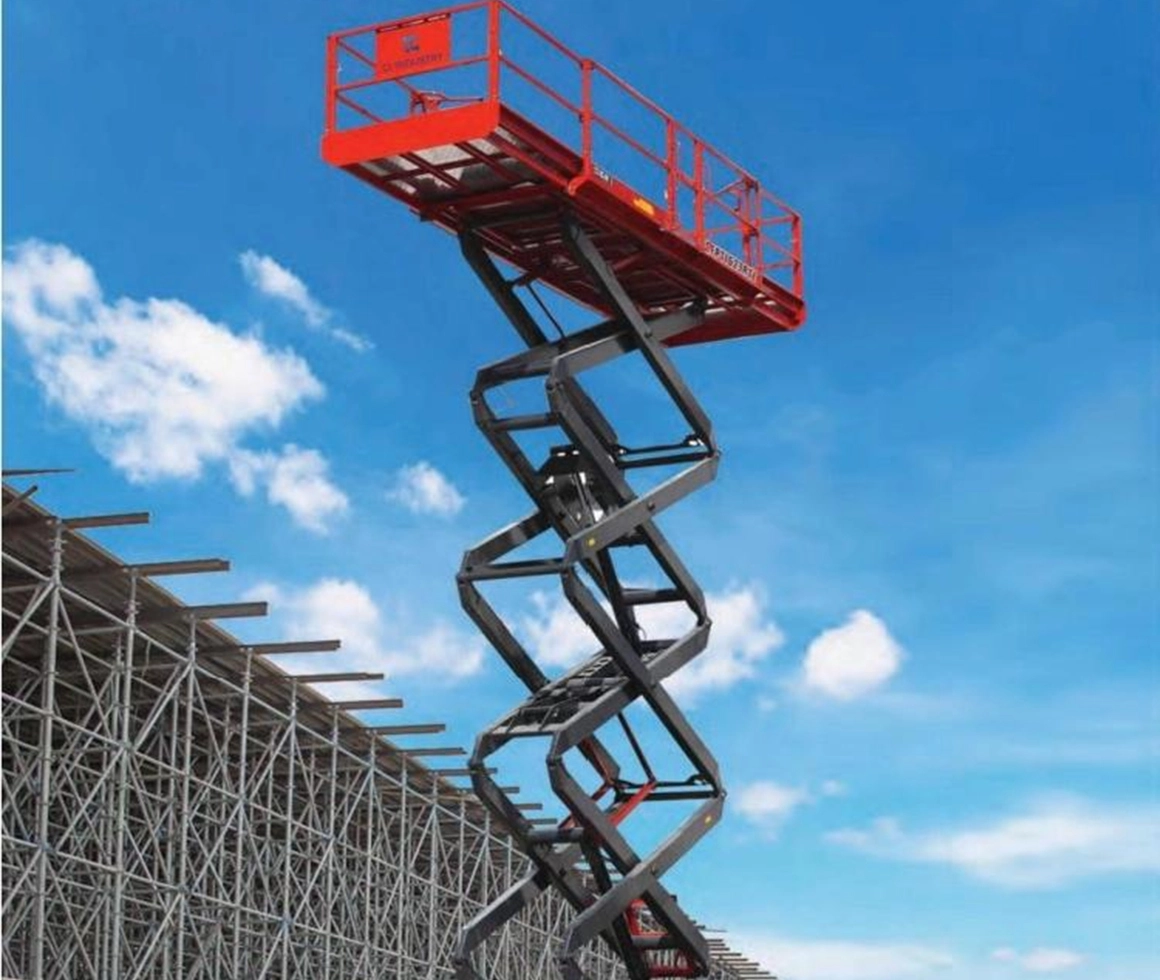

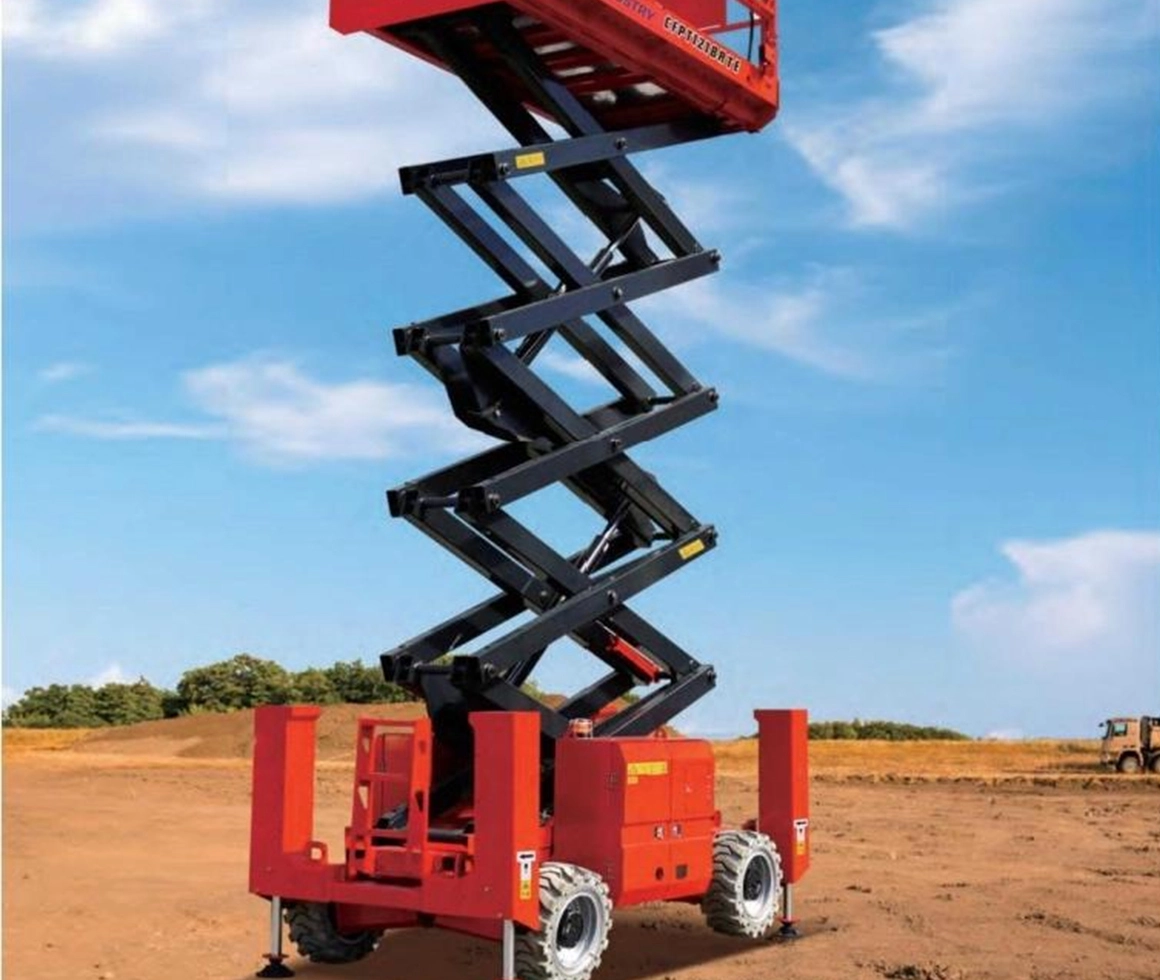

This Electric Rough Terrain Scissor Lift Platform with Outriggers has 4 models available. The maximun working height range from 14000 to 18000 mm.
Models Available:
(*Details please check Attached Profile)
CFPT1218RDE
CFPT1418RDE/CFPT1418RDE+
CFPT1623RD
| Size | CFPT1218RDE | CFPT1623RDE |
| Max.Working Height -A(mm) | 14000 | 18000 |
| Max.Platlorm Height -B(mm) | 12000 | 16000 |
| Overall Length -C(mm) | 3340 | 4900 |
| Overall Width -D(mm) | 1790 | 2280 |
| Overall Height(Guardral Unfolded)-E1(mm) | 2270 | 3260 |
| Overall Height(Guardrail Folded)-E2(mm) | 2110 | 2520 |
| Platorm Size(Length)-F1(mm) | 2910 | 4000 |
| Platform Slze(Wdth)-F2(mm) | 1530 | 1825 |
| Platform Extension Size -G(mm) | 1445 | 1450/1150 |
| Min. Ground Clearance (mm) | 160 | 280 |
| Performance | ||
| Load Capacily(kg) | 365 | 680 |
| Load Capacity Of Extended Platform(kg) | 140 | 230 |
| Workers (Indoor/Outdoor) | 3/2 | 4/4 |
| Min Turning Radius (Inner Wheel)(mm) | 1730 | 4000 |
| Min Turning Radius (Outer Wheel)(mm) | 3800 | 6750 |
| Lifting Motor | 48V/5kw | 80V/15kw |
| Traveling Motor | 2*48V/1.2kw+ 2*48V/3.5kw | 80V/18kw |
| Machine Running Speed (Stowed)(km/h) | 4.5 | 5.1 |
| Machine Running Speed (Raised)(km/h) | 0.8 | 1.1 |
| Rising/Descending Speed(s) | 77/80 | 76/70 |
| Gradeability(%) | 35 | 40 |
| Max. Working Slope(°) | 2/3 | 2/3 |
| Tyre(mm) | φ660×180 | φ835×290 |
| Power | ||
| Battery | 48V/240Ah | 77.8V/375Ah |
| Charger | 48V/35A | 72V/80A |
| Weight | ||
| Weight(kg) | 4900 | 8380 |
| Size | CFPT1418RDE | CFPT1418RDE+ |
| Max.Working Height -A(mm) | 16000 | 16000 |
| Max.Platlorm Height -B(mm) | 14000 | 14000 |
| Overall Length -C(mm) | 3340 | 3340 |
| Overall Width -D(mm) | 1790 | 1790 |
| Overall Height(Guardral Unfolded)-E1(mm) | 2960 | 2960 |
| Overall Height(Guardrail Folded)-E2(mm) | 2295 | 2295 |
| Platorm Size(Length)-F1(mm) | 2910 | 2910 |
| Platform Slze(Wdth)-F2(mm) | 1530 | 1530 |
| Platform Extension Size -G(mm) | 1520 | 1520 |
| Min. Ground Clearance (mm) | 160 | 190 |
| Performance | ||
| Load Capacily(kg) | 320 | 600 |
| Load Capacity Of Extended Platform(kg) | 140 | 140 |
| Workers (Indoor/Outdoor) | 3/2 | 4/2 |
| Min Turning Radius (Inner Wheel)(mm) | 3650 | 3650 |
| Min Turning Radius (Outer Wheel)(mm) | 5850 | 5850 |
| Lifting Motor | 48V/6kw | 48V/6kw |
| Traveling Motor | 2*48V/1.2kw+ 2*48V/3.5kw | 2*48V/1.2kw+ 2*48V/3.5kw |
| Machine Running Speed (Stowed)(km/h) | 4.5 | 4.5 |
| Machine Running Speed (Raised)(km/h) | 0.8 | 0.8 |
| Rising/Descending Speed(s) | 60/50 | 60/50 |
| Gradeability(%) | 35 | 35 |
| Max. Working Slope(°) | 2/3 | 2/3 |
| Tyre(mm) | φ660×180 | φ650×260 |
| Power | ||
| Battery | 8×6V/310Ah | 8×6V/310Ah |
| Charger | 48V/40A | 48V/40A |
| Weight | ||
| Weight(kg) | 5560 | 5560 |
| Configuration | |
| Standard Configuration | * Horn |
| * Timer | |
| * Strobe Light | |
| * Emergency Descent | |
| * 4x4 Drive | |
| * Driving Confirmation | |
| * Folding Fence | |
| * Buzzer | |
| * Tilt Alarm | |
| * Platform Self-locking Door | |
| * Floating Bridge Chassis | |
| * Lanyard Connection Point | |
| * Extension Platform -- Unidireactional/Bidirectional | |
| * Manual Brake Release | |
| * Automatic Brake System | |
| * Emergency Stop Button | |
| * Non-Marking Tire -- 12m/14m | |
| * Battery Charge(Fast/Slow)--16m | |
| * Weight Drop System | |
| * Oil Pipe Explosion -- Proof System | |
| * Fault Diagnosis System | |
| * Full Proportional Handle Control | |
| * Hydraulic Oil Cooling System -- 16m | |
| * Fixing And Lifting Points | |
| * Automatic Hydraulic Leveling Leg | |
| * Load Sensing System | |
| Optional Configuration | * Lithium Battery -- 12m/14m/16m(Diesel) |
| * 1.83m Work Fence | |
| * Top Limit Protection | |
| * Platform Work Lights | |
| * To Platform AC Power Cord | |
| * Foam Non-marking Tire -- 16m(Electrid/Diesel) | |
