This Crawler Scissor Lift with Outriggers has 6 models available. The maximun working height range from 8700 to 15750 mm.
Models Available:
(*Details please check Attached Profile)

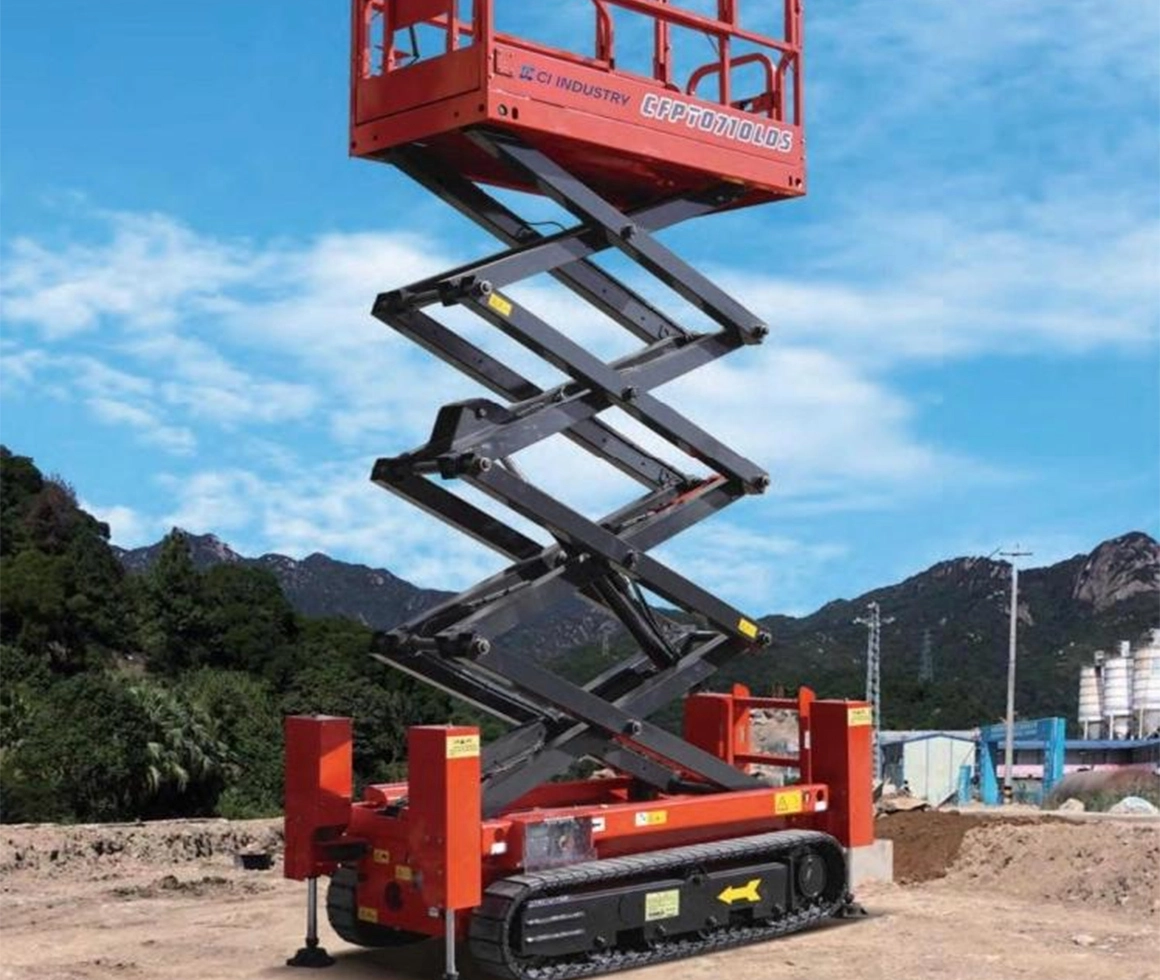

CFPT0710LDS

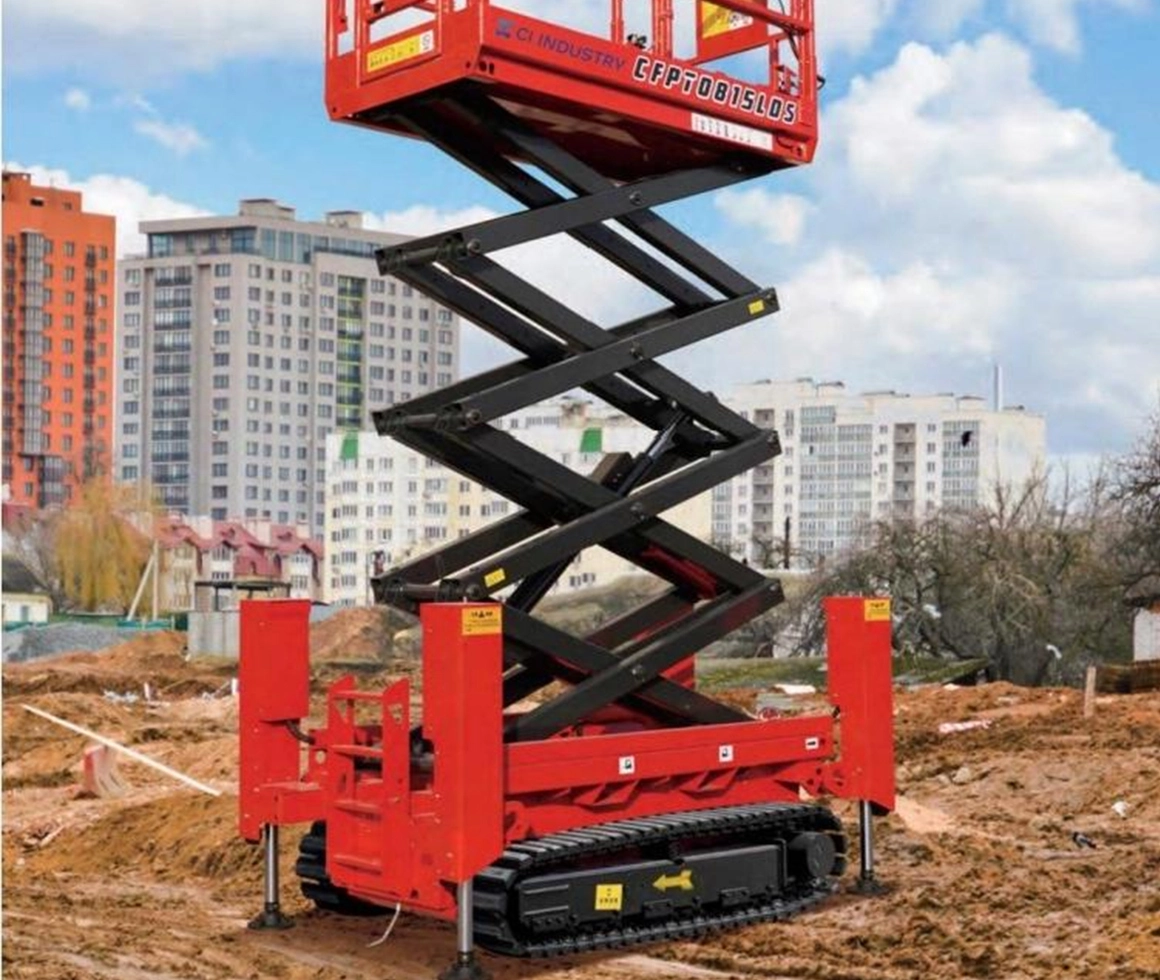

CFPT0815LDS

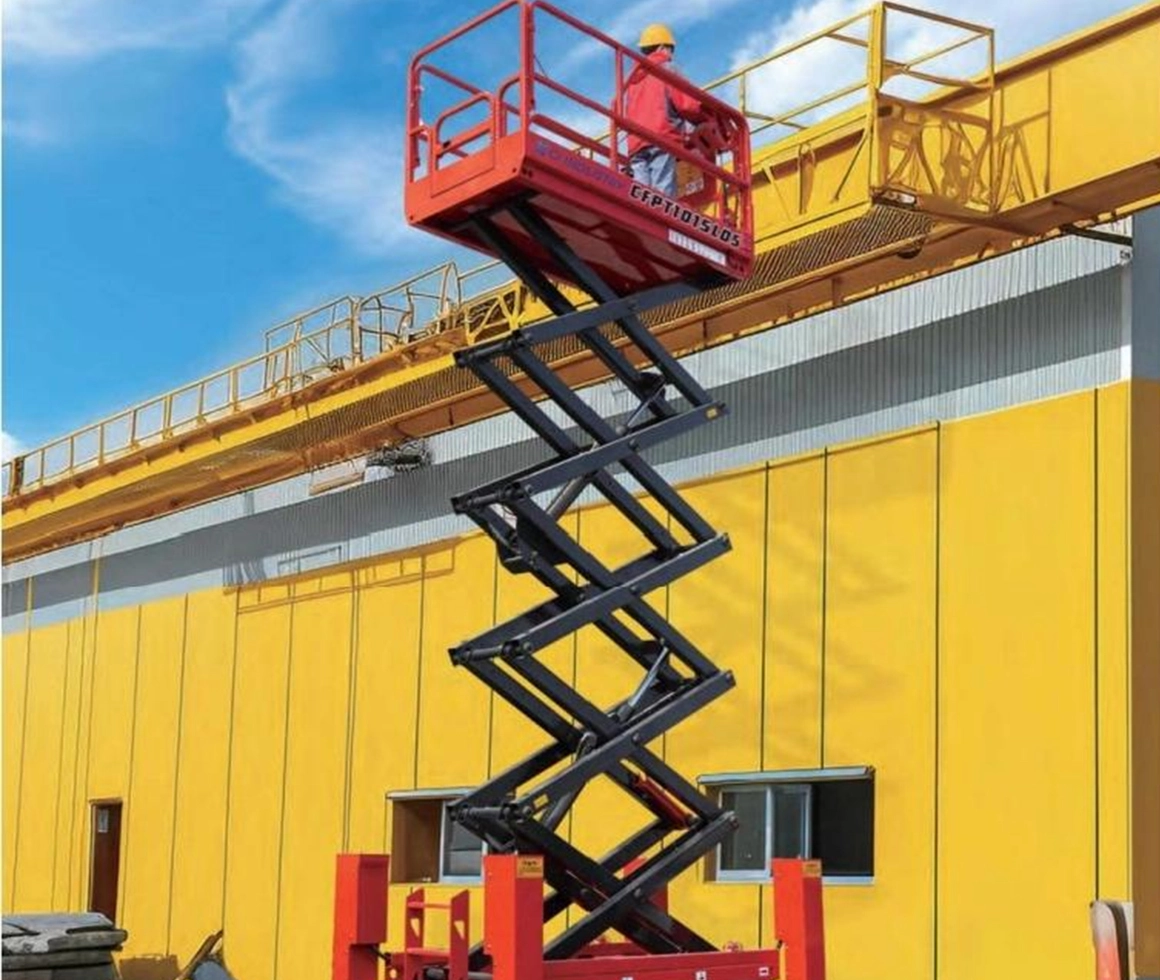

CFPT1015LDS

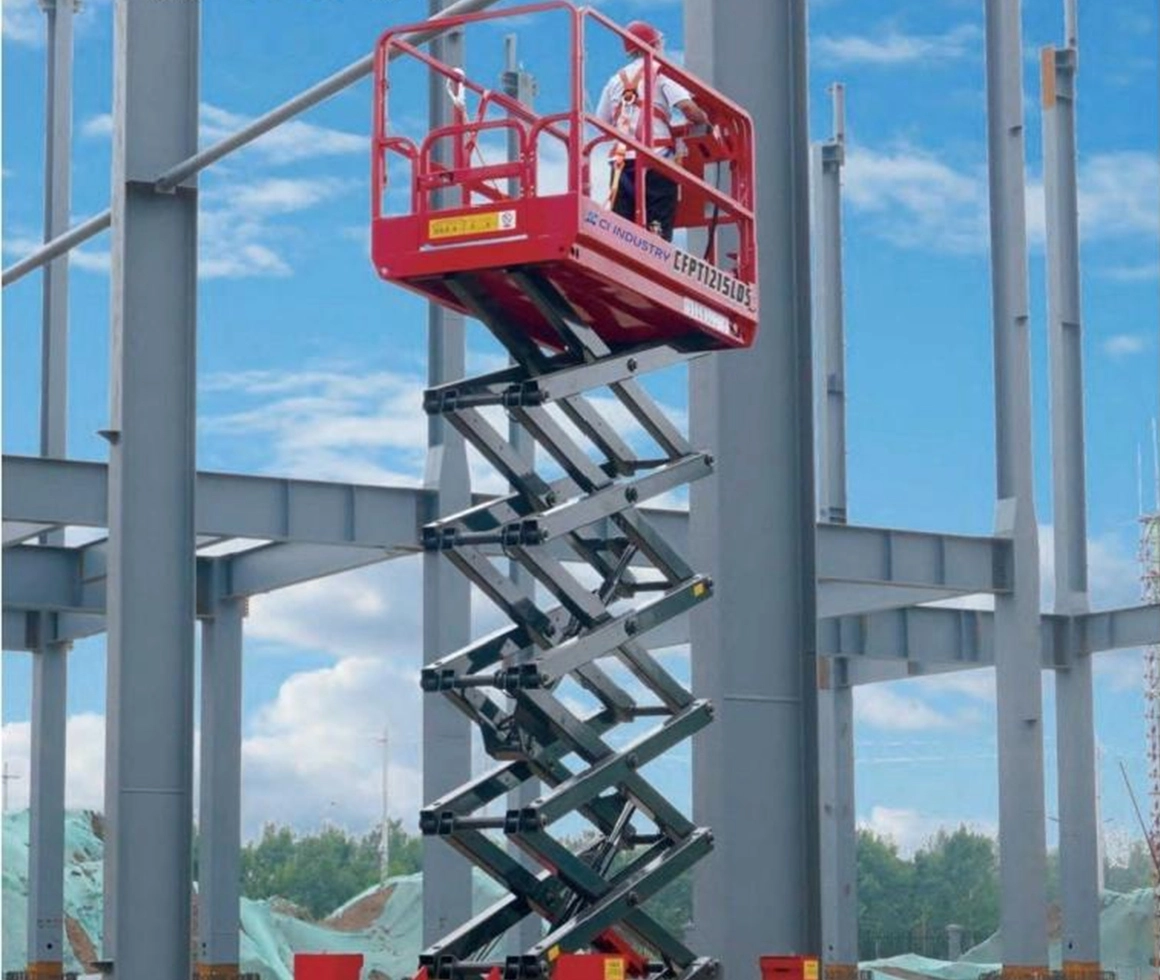

CFPT1215LDS

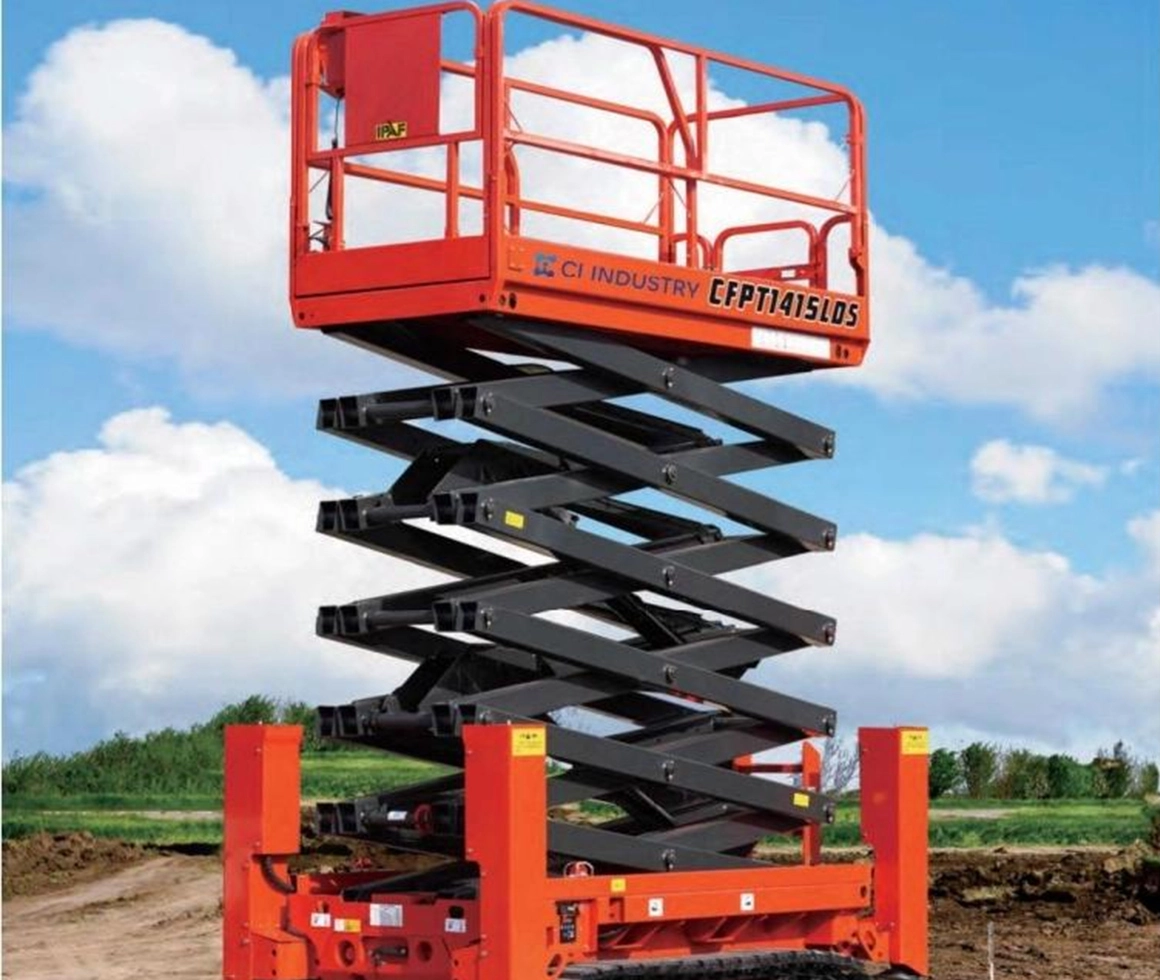

CFPT1415LDS
| Size | CFPT0710LDS | CFPT0815LDS | CFPT1015LDS |
| Max.Working Height -A(mm) | 8700 | 10000 | 11750 |
| Max.Platlorm Height -B(mm) | 6700 | 8000 | 9750 |
| Overall Length -C(mm) | 2455 | 2767 | 2767 |
| Overall Width -D(mm) | 1010 | 1500 | 1500 |
| Overall Height(Guardral Unfolded)-E1(mm) | 2180 | 2460 | 2590 |
| Overall Height(Guardrail Folded)-E2(mm) | 1830 | 1865 | 1995 |
| Platorm Size(Length)-F1(mm) | 1859 | 2270 | 2270 |
| Platform Slze(Wdth)-F2(mm) | 810 | 1110 | 1110 |
| Platform Extension Size -G(mm) | 900 | 900 | 900 |
| Min. Ground Clearance (mm) | 90 | 150 | 150 |
| Performance | |||
| Load Capacily(kg) | 230 | 450 | 320 |
| Load Capacity Of Extended Platform(kg) | 113 | 113 | 113 |
| Workers (Indoor/Outdoor) | 2/1 | 2/2 | 2/2 |
| Min. Turning Radius (mm) | 0 | 0 | 0 |
| Lifting Motor | 24V/2.2kw | 48V/4.5kw | 48V/4.5kw |
| Traveling Motor | 2*24V/1.2kw | 2*48V/5.8kw | 2*48V/5.8kw |
| Machine Running Speed (Stowed)(km/h) | 1.8 | 2 | 2 |
| Machine Running Speed (Raised)(km/h) | 0 | 0 | 0 |
| Rising/Descending Speed(s) | 20/19 | 40/35 | 56/45 |
| Gradeability(%) | 25 | 30 | 30 |
| Max. Working Slope(°) | 1.5/3 | 2/3 | 2/3 |
| Power | |||
| Battery | 24V/260Ah | 8×6V/240Ah | 8×6V/240Ah |
| Charger | 24V/36A | 48V/40A | 48V/40A |
| Weight | |||
| Weight(kg) | 1940 | 3253 | 3523 |
| Size | CFPT1215LDS | CFPT1415LDS |
| Max.Working Height -A(mm) | 13750 | 15750 |
| Max.Platlorm Height -B(mm) | 11750 | 13750 |
| Overall Length -C(mm) | 2767 | 2977 |
| Overall Width -D(mm) | 1500 | 1500 |
| Overall Height(Guardral Unfolded)-E1(mm) | 2740 | 2820 |
| Overall Height(Guardrail Folded)-E2(mm) | 2130 | 2260 |
| Platorm Size(Length)-F1(mm) | 2270 | 2640 |
| Platform Slze(Wdth)-F2(mm) | 1110 | 1110 |
| Platform Extension Size -G(mm) | 900 | 900 |
| Min. Ground Clearance (mm) | 150 | 150 |
| Performance | ||
| Load Capacily(kg) | 320 | 320 |
| Load Capacity Of Extended Platform(kg) | 113 | 113 |
| Workers (Indoor/Outdoor) | 2/2 | 2/2 |
| Min. Turning Radius (mm) | 0 | 0 |
| Lifting Motor | 48V/4.5kw | 48V/4.5kw |
| Traveling Motor | 2*48V/5.8kw | 2*48V/5.8kw |
| Machine Running Speed (Stowed)(km/h) | 2 | 2 |
| Machine Running Speed (Raised)(km/h) | 0 | 0 |
| Rising/Descending Speed(s) | 52/54 | 80/60 |
| Gradeability(%) | 30 | 30 |
| Max. Working Slope(°) | 2/3 | 2/3 |
| Power | ||
| Battery | 8×6V/240Ah | 8×12V/240Ah |
| Charger | 48V/40A | 48V/40A |
| Weight | ||
| Weight(kg) | 3700 | 4665 |
| Configuration | |
| Standard Configuration | * Proportional Control |
| * Self-Lock Gate On Platform | |
| * Extension Platform | |
| * Crawler | |
| * Automatic Brake System | |
| * Emergency Descent System | |
| * Emergency Stop Button | |
| * Tubing Explosion-Proof System | |
| * Fault Diagnosis System | |
| * Tilt Protection System | |
| * Buzzer | |
| * Horn | |
| * Safety Maintenance Support | |
| * Standard Forklift Slot | |
| * Charging Protection System | |
| * Strobe Lamp | |
| * Foldable Guardrail | |
| Optional Configuration | * Overload Sensor with Alarm |
| * AC Power on the Platform | |
| * Platform Work Light | |
| * Chassis-To-Platform Air Duct | |
| * Top Limit Protection | |
| * Steel Crawler | |
