This Crawler Scissor Lift has 6 models available. The maximun working height range from 5500 to 12000 mm.
Models Available:
(*Details please check Attached Profile)

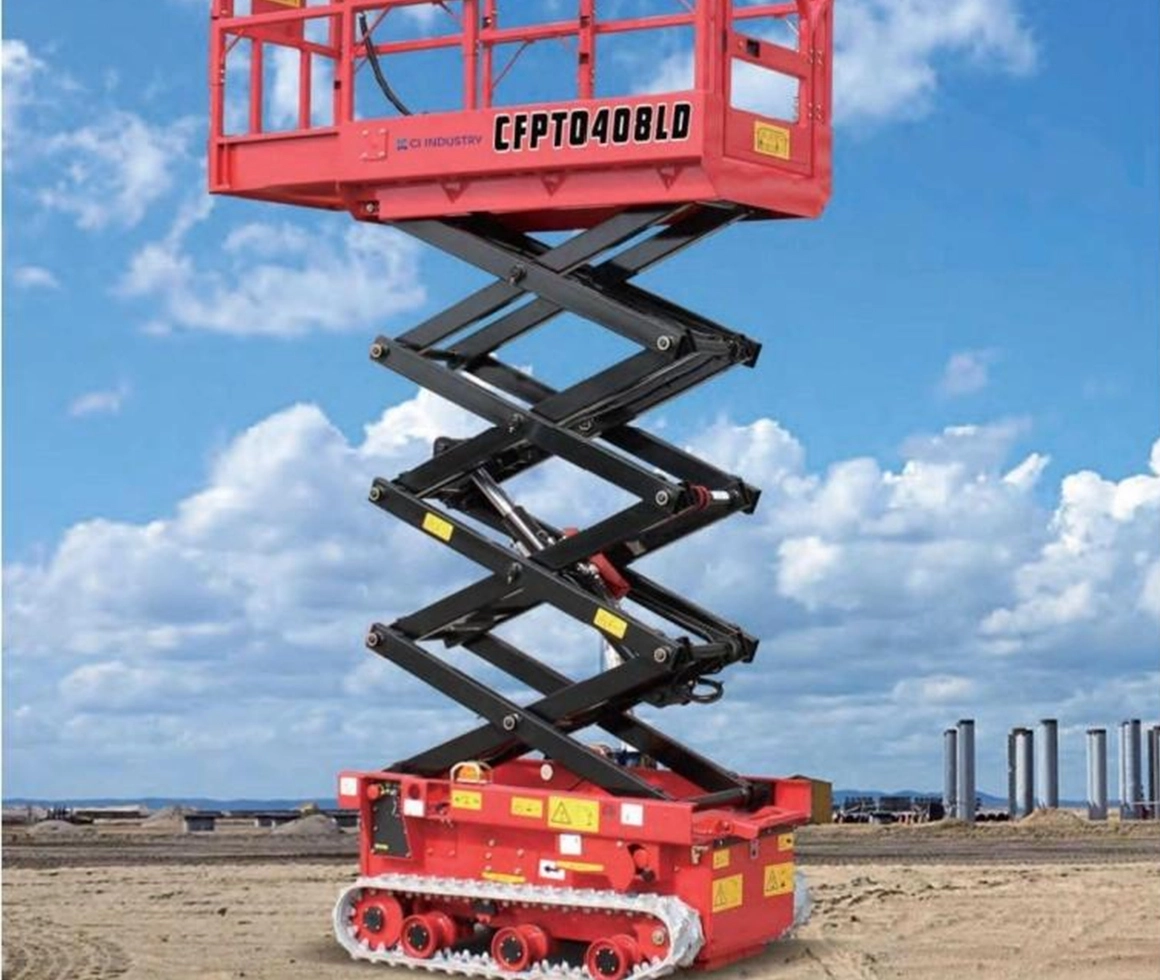

CFPT0307LD/CFPT0408LD

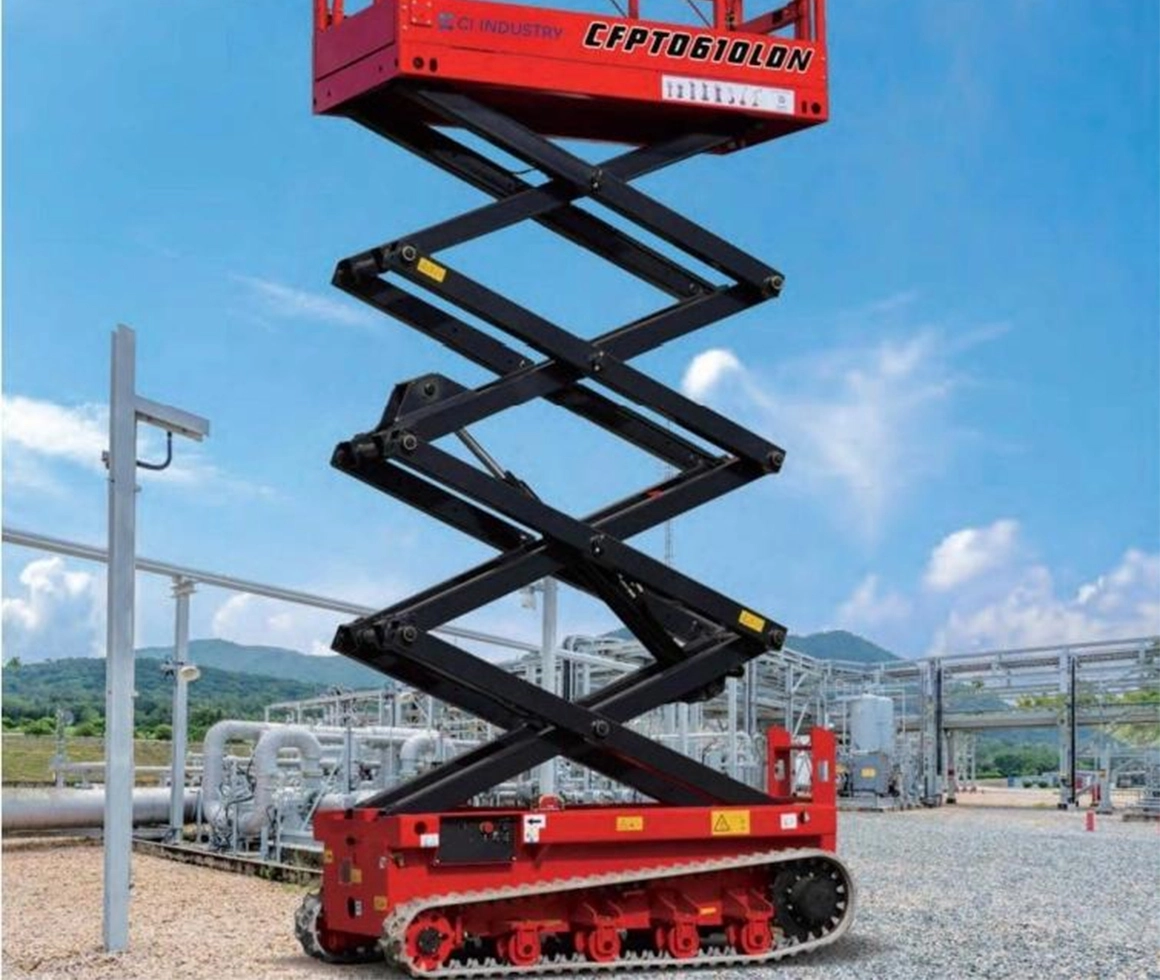

CFPT0610LDN

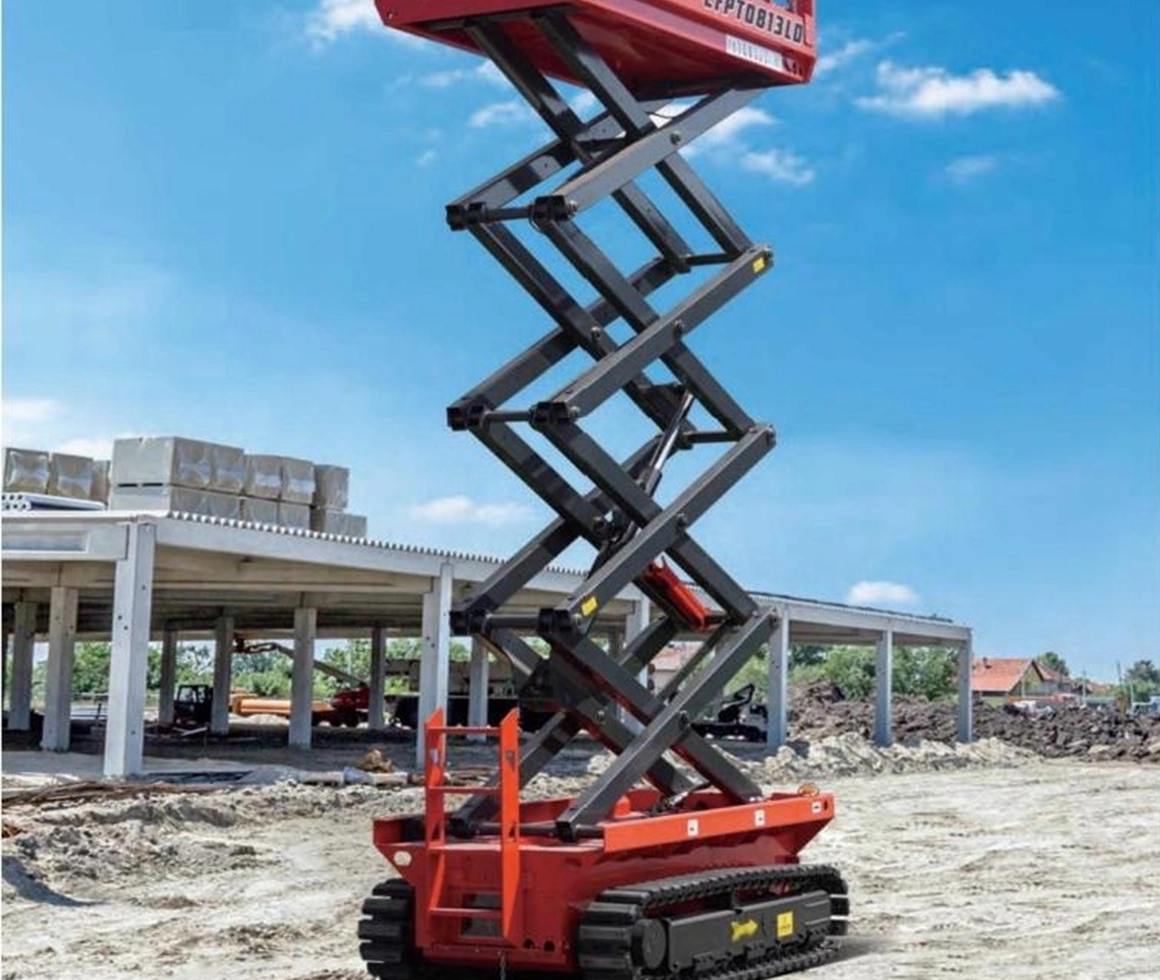

CFPT0613LD/CFPT0813LD/CFPT1013LD
| Size | CFPT0307LD | CFPT0408LD | CFPTO610LDN |
| Max.Working Height -A(mm) | 5500 | 6500 | 8000 |
| Max.Platlorm Height -B(mm) | 3500 | 4500 | 6000 |
| Overall Length -C(mm) | 1200 | 1445 | 2057 |
| Overall Width -D(mm) | 760 | 782 | 1030 |
| Overall Height(Guardral Unfolded)-E1(mm) | 2070 | 2080 | 2170 |
| Overall Height(Guardrail Folded)-E2(mm) | 1680 | 1700 | 1820 |
| Platorm Size(Length)-F1(mm) | 1180 | 1230 | 1859 |
| Platform Slze(Wdth)-F2(mm) | 760 | 655 | 810 |
| Platform Extension Size -G(mm) | 500 | 600 | 900 |
| Min. Ground Clearance (mm) | 50 | 50 | 150 |
| Performance | |||
| Load Capacily(kg) | 200 | 200 | 230 |
| Load Capacity Of Extended Platform(kg) | 100 | 100 | 113 |
| Workers (Indoor/Outdoor) | 1/0 | 1/0 | 2/1 |
| Min. Turning Radius (mm) | 0 | 0 | 0 |
| Lifting Motor | 24V/1.2kw | 24V/1.2kw | 24V/1.2kw |
| Traveling Motor | 2*24V/1.5kw | 2*24V/1.5kw | 16V/3kw |
| Machine Running Speed (Stowed)(km/h) | 1.7 | 1.7 | 2.4 |
| Machine Running Speed (Raised)(km/h) | 0 | 0 | 0 |
| Rising/Descending Speed(s) | 20/18 | 32/20 | 35/30 |
| Gradeability(%) | 25 | 25 | 25 |
| Max. Working Slope(°) | 1.5/3 | 1.5/3 | 1.5/3 |
| Power | |||
| Battery | 2×12V/100Ah | 2×12V/100Ah | 4×12V/300Ah |
| Charger | 24V/15A | 24V/15A | 24V/36A |
| Weight | |||
| Weight(kg) | 810 | 900 | 1810 |
| Size | CFPT0613LD | CFPT0813LD | CFPT1013LD |
| Max.Working Height -A(mm) | 12000 | 8000 | 10000 |
| Max.Platlorm Height -B(mm) | 9750 | 6000 | 8000 |
| Overall Length -C(mm) | 2475 | 2475 | 2475 |
| Overall Width -D(mm) | 1390/1340 | 1390/1340 | 1390/1340 |
| Overall Height(Guardral Unfolded)-E1(mm) | 2530 | 2310 | 2460 |
| Overall Height(Guardrail Folded)-E2(mm) | 1995 | 1745 | 1865 |
| Platorm Size(Length)-F1(mm) | 2270 | 2270 | 2270 |
| Platform Slze(Wdth)-F2(mm) | 1120 | 1110 | 1110 |
| Platform Extension Size -G(mm) | 900 | 900 | 900 |
| Min. Ground Clearance (mm) | 150 | 150 | 150 |
| Performance | |||
| Load Capacily(kg) | 320 | 450 | 450 |
| Load Capacity Of Extended Platform(kg) | 113 | 113 | 113 |
| Workers (Indoor/Outdoor) | 2/1 | 2/1 | 2/1 |
| Min. Turning Radius (mm) | 0 | 0 | 0 |
| Lifting Motor | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw |
| Traveling Motor | 32V/4kw | 32V/4kw | 32V/4kw |
| Machine Running Speed (Stowed)(km/h) | 2.4 | 2 | 2 |
| Machine Running Speed (Raised)(km/h) | 0 | 0 | 0 |
| Rising/Descending Speed(s) | 70/62 | 31/30 | 40/35 |
| Gradeability(%) | 30 | 30 | 30 |
| Max. Working Slope(°) | 2/3 | 2/3 | 2/3 |
| Power | |||
| Battery | 8×6V/240Ah | 8×6V/240Ah | 8×6V/240Ah |
| Charger | 48V/40A | 24V/36A | 48V/40A |
| Weight | |||
| Weight(kg) | 3140/3170 | 2750/2780 | 2900/2930 |
| Configuration | |
| Standard Configuration | * Proportional Control |
| * Self-Lock Gate On Platform | |
| * Extension Platform | |
| * Crawler | |
| * Automatic Brake System | |
| * Emergency Descent System | |
| * Emergency Stop Button | |
| * Tubing Explosion-Proof System | |
| * Fault Diagnosis System | |
| * Tilt Protection System | |
| * Buzzer | |
| * Horn | |
| * Safety Maintenance Support | |
| * Standard Forklift Slot | |
| * Charging Protection System | |
| * Strobe Lamp | |
| * Foldable Guardrail | |
| Optional Configuration | * Overload Sensor with Alarm |
| * AC Power on the Platform | |
| * Platform Work Light | |
| * Chassis-To-Platform Air Duct | |
| * Top Limit Protection | |
| * Rubber Crawler/ Steel Crawler | |
